Position: Home  > All Categories> Integrated Circuits (ICs) > F251RF-05LLB

F251RF-05LLB

FAN 5VDC 25X10MM .25W 1.41CFM

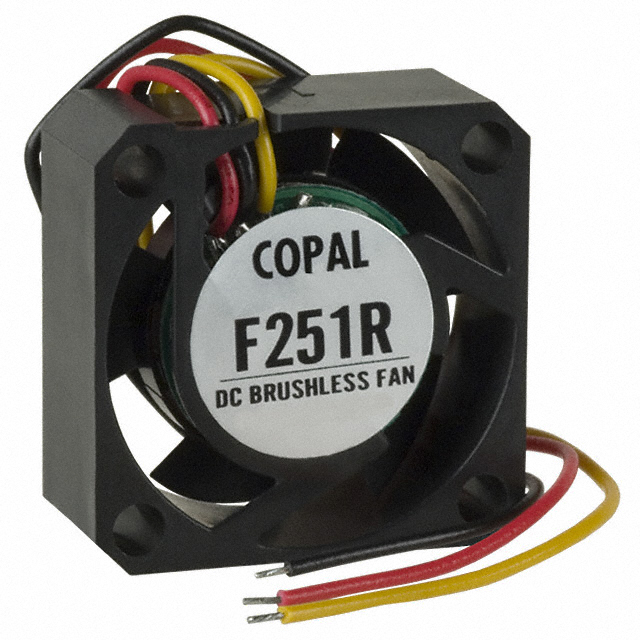

product image

F251RF-05LLB Picture
See larger image
SeekIC No. : 003439410 Detail

F251RF-05LLB: FAN 5VDC 25X10MM .25W 1.41CFM

F251RF-05LLB Data Sheet

floor Price/Ceiling Price

US $ 3.99~7.81 / Piece | Get Latest Price
Part Number:
F251RF-05LLB
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • 50~100
  • 100~250
  • 250~500
  • 500~1000
  • Unit Price
  • $7.81
  • $7.15
  • $5.98
  • $5.49
  • $4.82
  • $4.49
  • $4.16
  • $3.99
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: F251RF Manufacturer: Copal Electronics Inc
Fan Type: Tubeaxial Size / Dimension: Square - 25mm L x 25mm H x 10mm W
Voltage - Rated: 5VDC Power (Watts): 0.25W
Features: Speed Sensor (Tach) RPM: 6500 RPM
Noise: 11 dB(A) Static Pressure: 0.080 in H2O (19.9 Pa)
Package / Case : SOT-307 Air Flow: 1.4 CFM (0.040m³/min)
Termination: 3 Wire Leads Bearing Type: 1 Ball/1 Sleeve

Description

Fan Type: Tubeaxial
Voltage - Rated: 5VDC
RPM: 6500 RPM
Features: Speed Sensor (Tach)
Termination: 3 Wire Leads
Size / Dimension: Square - 25mm L x 25mm H x 10mm W
Operating Temperature: 14 ~ 140°F (-10 ~ 60°C)
Manufacturer: Copal Electronics Inc
Power (Watts): 0.25W
Noise: 11 dB(A)
Static Pressure: 0.080 in H2O (19.9 Pa)
Air Flow: 1.4 CFM (0.040m³/min)
Bearing Type: 1 Ball/1 Sleeve
Series: F251RF


Parameters:

Technical/Catalog InformationF251RF-05LLB
VendorCopal Electronics Inc
CategoryFans
Voltage - Rated 5VDC
Power (Watts)0.25W, 1/4W
Bearing TypeBall
Size / DimensionSquare - 25mm L x 25mm H x 10mm W
Air Flow1.413 CFM
Features-
Termination2 Wire Leads
Fan TypeTubeaxial
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names F251RF 05LLB
F251RF05LLB
563 1119 ND
5631119ND
563-1119
