Part Number: F5CH-L2
Description: The F5CH series of SAW bandpass filters apply to the frequency range 700 MHz to 1000 MHz.The S...
- Table of contents:
F5CH-L2
-
Suppliers
DataSheet
General Description
F5CH-L2 General Description
The F5CH series of SAW bandpass filters apply to the frequency range 700 MHz to 1000 MHz.
The SAW filters are fabricated on a lithium tantalate (LiTaO3) substrate, producing filters with a wide frequency
bandwidth, low insertion loss in passband and superior stability due to the high electromechanical coupling coefficient of the material.
The F5CH series filters are housed in a small surface mount package. Moreover, the impedance in the passband is 50 ohms, and so applications require no external matching circuits.
The F5CH series SAW filters are suitable for interstage RF filter in mobile communications systems in the frequency range 700 MHz to 1000 MHz. Standard devices are available for AMPS, ETACS, GSM, EGSM, PDC and so on.
F5CH-L2 Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min | Max | |||
| Operating temperature | Ta | 30 | +85 | °C |
| Storage temperature | Tstg | 40 | +100 | °C |
| Maximum input power | PIN | - | 200 | mW |
| Frequency range | - | 700 | +1000 | MHz |
WARNING: Piezoelectric devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
F5CH-L2 Features
• Low insertion loss and high attenuation
• High handling power (0.2 W)
• Ultra compact and light package (3.8 mm)
• External matching circuits are not required.
• Surface mount package (SMT)
• Wide variety of standard devices for worldwide mobile communication systems (AMPS, GSM, EGSM, ETACS, PDC800, NTACS, 2 WAY PAGER etc.)
• High handling power (0.2 W)
• Ultra compact and light package (3.8 mm)
• External matching circuits are not required.
• Surface mount package (SMT)
• Wide variety of standard devices for worldwide mobile communication systems (AMPS, GSM, EGSM, ETACS, PDC800, NTACS, 2 WAY PAGER etc.)
F5CH-L2 Connection Diagram
F5CE Series (D2)
PDF/DataSheet Download
- Datasheet: F5CE Series (D2)
- File Size: 176399 KB
- Manufacturer: Fujitsu
- Click here to Download
- ·F5CH Series (L2)
- Fujitsu
- SAW Filter for Mobile Communication System
- 401929 KB
- ·F5CM Series (B2)
- Fujitsu
- Balanced SAW Filter for Digital Mobile Telephone
- 120375 KB
- ·F5CP
- FUJITSU [Fujitsu Media Devices Limited]
- 2.5 x 2.0mm package F5CP / F6CP Dimensions & Pin Configuration
- 60876 KB
- ·F5CP series (D2)
- Fujitsu
- DMS Filter for Mobile Communication System
- 133982 KB
F5CH-L2 Relative Products
F5CH
The F5CH series of SAW bandpass filters apply to the frequency range 700 to 1000 MHz.The SAW filters are fabricated on a lithium tantalate (LiTaO3) substrate, producing filters with a wide frequency bandwidth, low insertion loss in passband and superior stab...
F5CE-K2
The F5CE/F6CE-K2 series of SAW band pass filters is available in the 700-1700 MHz frequency range and exhibit high stability by using single crystal Lithium Tantalate (LiTaO3) with a large electro-mechanical coefficient. The F5CE/F6CE-K2 series provides low ...
F5CE-D2
The F5CE-D2 series of SAW bandpass filters apply to the frequency range 700 MHz to 1000 MHz. These filters make it possible to provide high stop-band attenuation and excellent pass-band flatness due to using unique DMS (Double Mode SAW) technology as design ...

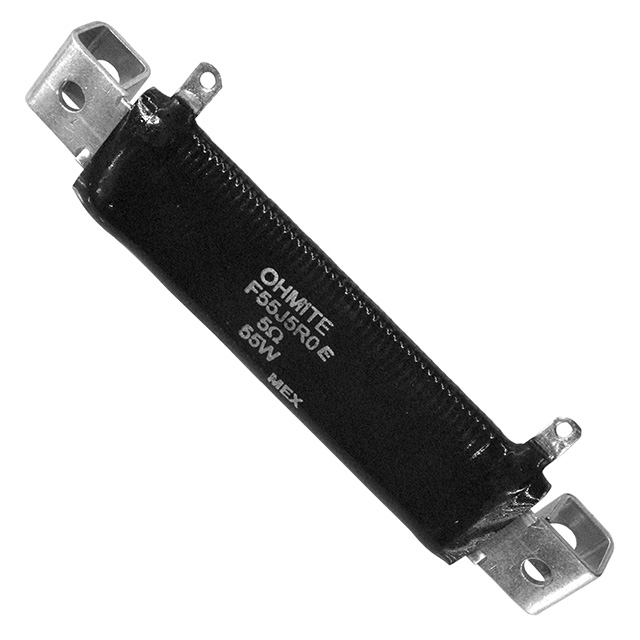

F55J5R0E
