General Description
F6-L2 General Description
The F6 series of SAW band pass filters apply to the frequency range 1000 MHz to 2500 MHz.
The SAW filters are fabricated on a lithium tantalate (LiTaO3) substrate, producing filters with a wide frequency bandwidth, low insertion loss in pass-band and superior stability due to the high electromechanical coupling coefficient of the material.
Fujitsu's leading techniques for making filter pattern designs realized this high frequency filter.
The F6 series filters are housed in a small surface mount package. Moreover, the impedance in the pass-band is 50 , and so applications require no external matching circuits.
The F6 series SAW filters are suitable for interstage RF filter in mobile communications systems in the sub microwave frequency band. Standard devices are available for PCS, DCS1800, and 2.4 GHz wireless LAN systems.
F6-L2 Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min | Max | |||
| Operating temperature | Ta | 30 | +85 | °C |
| Storage temperature | Tstg | 40 | +100 | °C |
| Input level | PIN | Refer to "nELECTRICAL CHARACTERISTICS". | ||
| Input DC voltage | - | -5 | +5 | V |
WARNING: Piezoelectric devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
F6-L2 Features
• High frequency filters
• Low insertion loss
• Ultra compact and light package (3.0 mm × 3.0 mm)
• External matching circuits are not required.
• Surface mount package (SMT)
• Wide variety of standard devices for worldwide mobile communication systems
• Low insertion loss
• Ultra compact and light package (3.0 mm × 3.0 mm)
• External matching circuits are not required.
• Surface mount package (SMT)
• Wide variety of standard devices for worldwide mobile communication systems
F6-L2 Connection Diagram
- Datasheet:
- File Size: KB
- Manufacturer:
- Click here to Download
- · EPCS4SI8
- 226669 KB
- · UTC2411
- 136508 KB
- ·(M5M410092B)
- Mitsubishi
- 3D-RAM
- 1268750 KB
- ·_FCQ30A06
- NIEC [Nihon Inter Electronics Corporation]
- LOW FORWARD VOLTAGE DROP
- 29515 KB
- ·0001.2501.PT
- Fuse
- 40400 KB
- ·0001.2501.TR
- Fuse
- 40400 KB
- ·0001.2502.PT
- Fuse
- 40400 KB
- ·0001.2502.TR
- Fuse
- 40400 KB
F6-L2 Relative Products
F6-K2
The F5/F6-K2 series of SAW band pass filters is available in the 700 MHz-1700 MHz frequency range and exhibit high stability by using single crystal Lithium Tantalate (LiTaO3) with a large electro-mechanical coefficient. The F5/F6-K2 series provides low inse...
F6H1
F6CP-D2
The F5CP/F6CP series of SAW band pass filters have 2.5 mm × 2.0 mm × 0.9 mm (h) of ultra small package, which are available in the 700 MHz to 1700 MHz frequency range. They exhibit high stability by using single crystal, Lithium Tantalate (LiTaO3) with a lar...
F6CE-K2
The F5CE/F6CE-K2 series of SAW band pass filters is available in the 700-1700 MHz frequency range and exhibit high stability by using single crystal Lithium Tantalate (LiTaO3) with a large electro-mechanical coefficient. The F5CE/F6CE-K2 series provides low ...
F6-75W

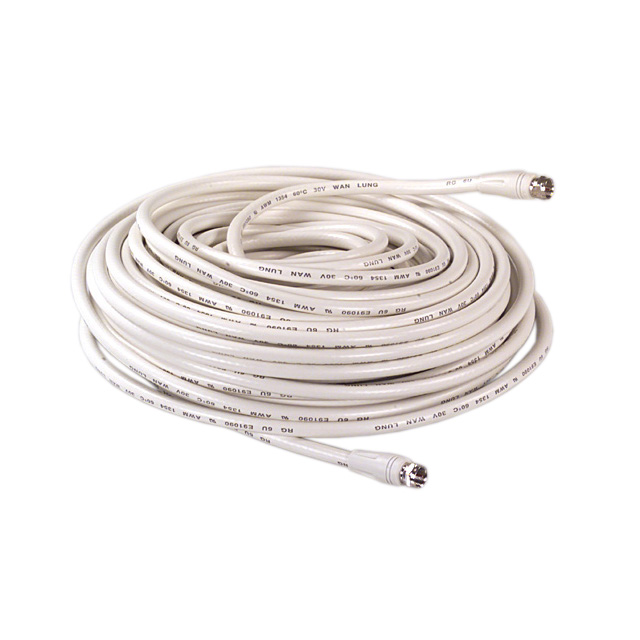

CABLE RG6/U W/F-CONN WHITE 75'
