Features:

• Range of package options
• QFP and MQFP packages (0.8 mm pitch)
• LQFP package (0.5 mm and 0.65 mm pitch)

• High speed operation at low voltage
   Minimum instruction execution time =  0.4 µs (for a 10 MHz oscillation)

• F2MC-8L CPU core
   Instruction set optimized for controller applications
• Multiplication and division instructions
• 16-bit arithmetic operations
• Bit test branch instructions
• Bit manipulation instructions, etc.

• Dual-clock control system
• Main clock : 10 MHz max.
   (Four speed settings available, oscillation halts in sub-clock mode)
• Sub-clock : 32.768 kHz (Operation clock for sub-clock mode)

• Four channels
• 8/16-bit timer/counter (8-bit * 2 channels or 16-bit * 1 channel)
• 21-bit timebase timer
• Clock prescaler (15-bit)

• Serial I/O
Selectable transfer format (MSB-first or LSB-first) supports communications with a wide range of devices.

• A/D converter
• External interrupts
• External interrupt 1 (3 channels)
   Three independent interrupt inputs can be used to recover from low-power consumption modes (with edge-detection function)
• External interrupt 2 (1 channel with 8 inputs) Eight inputs can be used to recover from low-power consumption modes (with "L" level detection function)

• Low-power consumption modes (standby modes)
• Stop mode (As all oscillations halt in sub-clock mode, current consumption falls to almost zero.)
• Sleep mode (The CPU stops to reduce the current consumption to approximately 1/3 of normal.)
• Clock mode (All operation halts other than the clock prescaler resulting in very low power consumption.)

• I2C interface*
• Supports Intel SM bus and Philips I2C bus standards.
• Uses a two-wire data transfer protocol.

• Max. 35 I/O ports
• Output-only ports (N-ch open drain)   : 6
• General-purpose I/O ports (CMOS)      : 21
• Output-only ports (CMOS)   : 8

* : I2C license
     The customer is licensed to use the Philips I2C patent when using this product in an I2C system that complies  with the Philips I2C standard specifications.



Pinout

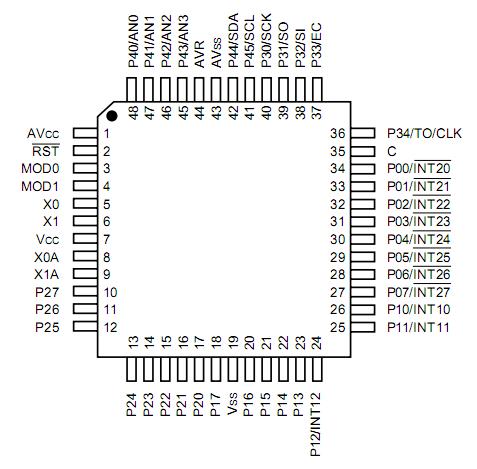

  Connection Diagram


Description

The MB89960 series is a single-chip microcontroller that utilizes the F2MC-8L core for low voltage and high speed performance. The microcontroller contains a range of peripheral functions including timers, a serial interface, I2Cinterface, A/D converter, and external interrupts. The internal I 2C interface complies with the SM bus standard and supports an SM bus battery controller.
