MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Descriptions: IC CONTROLLER PWM/LDO 16TSSOP
2500
.58500
1462.50
| Technical/Catalog Information | FAN5069EMTCX |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| PWM Type | Voltage/Current Mode |
| Number of Outputs | 1 |
| Package / Case | 16-TSSOP |
| Packaging | Tape & Reel (TR) |
| Duty Cycle | - |
| Voltage - Supply | 4.5 V ~ 24 V |
| Frequency-Max | 360kHz |
| Buck | Yes |
| Boost | No |
| Flyback | No |
| Inverting | No |
| Doubler | No |
| Divider | No |
| Cuk | No |
| Isolated | No |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FAN5069EMTCX FAN5069EMTCX |
FAN5069EMTCX
PDF/DataSheet Download
The FAN5069 combines a high efficiency Pulse-Width-Modulated PWM controller and a LDO (Low DropOut) linear regulator controller. Synchronous rectification provides high efficiency over a wide range of load currents. Efficiency is further enhanced by using th...

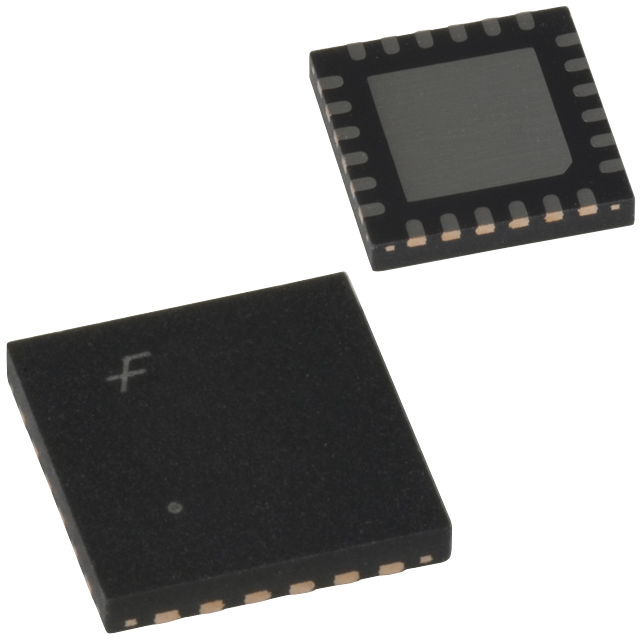

IC CTRLR DDR PWM/VDDQ/ACPI 24MLP
More DDR product information The FAN5068 DDR memory regulator combines a high-efficiency PWM controller to generate the supply voltage, VDDQ, and a linear regulator to generate VTT, the termination voltage. Synchronous rectification provides high-efficiency...
IC CTRLR SW ACPI DUAL 16SOIC
IC CTRLR SW ACPI DUAL 16SOIC
The FAN5067 is an ACPI Switch Controller for Pentium IV Platforms. It is controlled by PWROK, SLP_S3 and SLP_S5 , and provides 3.3V or 5V Dual and VADJ Dual output for SDRAM or DDR with 200mA minimum base current for an external NPN transistor. An on-board p...
