FAN7362

Features: • Floating Channel Designed for Bootstrap Operation to +600V.• Typically 250mA/500mA Sourcing/Sinking Current Driving Capability• Common-Mode dv/dt Noise Canceling Circuit• VCC & VBS Supply Range from 10V to 20V• UVLO Function• Output In-phase with...

product image

FAN7362 Picture
See larger image
SeekIC No. : 004340471 Detail

FAN7362: Features: • Floating Channel Designed for Bootstrap Operation to +600V.• Typically 250mA/500mA Sourcing/Sinking Current Driving Capability• Common-Mode dv/dt Noise Canceling Circui...

FAN7362 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN7362
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Floating Channel Designed for Bootstrap Operation to +600V.
• Typically 250mA/500mA Sourcing/Sinking Current Driving Capability
• Common-Mode dv/dt Noise Canceling Circuit
• VCC & VBS Supply Range from 10V to 20V
• UVLO Function
• Output In-phase with Input




Application

• Fluorescent Lamp Ballast
• PDP Scan Driver
• Motor Control

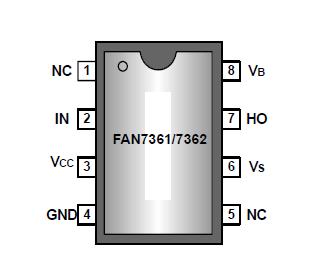

Pinout

Connection Diagram




Specifications

Parameter Symbol Min. Max. Unit
Highg side offset voltage VS VB-25 VB+0.3 V
High side floating supply voltage VB -0.3 625
High side floating output voltage HO VHO VS-0.3 VB+0.3
Logic fixed supply voltage VCC -0.3 25
Logic input voltage (IN) VIN -0.3 Vcc+0.3
Allowable offset voltage slew rate dVs/dt - ± 50 V/ns
Power dissipation PD - 0.625 W
Thermal resistance, junction to ambient Rthja - 200 °C/W
Junction temperature TJ - 150 °C
Storage temperature TS - 150 °C
Notes:
1.Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltage referenced to GND, all currents are defined positive into any lead.



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing
FAN7362MX Full Production RoHS Compliant $0.97 SOIC 8 TAPE REEL
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples





Description

The FAN7361/2, a monolithic high-side gate driver IC, can drive MOSFETs and IGBTs which operate up to +600V. Fairchild's high voltage process and common-mode noise canceling technique provides stable operation of the high-side driver under high dv/dt noise circumstances. An advanced level short circuit allows high-side gate driver operation up to VS=-9.8V(typ.) for VBS=15V.

The FAN7361/2 UVLO circuit prevents malfunction when VBS is lower than the specified threshold voltage. Output drivers typically source/ sink 250mA/500mA, respectively, which is suitable for fluorescent lamp ballast, PDP scan driver, motor control, and so on.
