FAN7527B

Features: • Internal Start-up Timer• Internal R/C Filter Eliminates the Need for an External R/C Filter• Very Precise Adjustable Output Over Voltage Protection• Zero Current Detector• One Quadrant Multiplier• Trimmed 1.5% Internal Band Gap Reference• Under...

product image

FAN7527B Picture
See larger image
SeekIC No. : 004340485 Detail

FAN7527B: Features: • Internal Start-up Timer• Internal R/C Filter Eliminates the Need for an External R/C Filter• Very Precise Adjustable Output Over Voltage Protection• Zero Current ...

FAN7527B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN7527B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal Start-up Timer
• Internal R/C Filter Eliminates the Need for an External R/C Filter
• Very Precise Adjustable Output Over Voltage Protection
• Zero Current Detector
• One Quadrant Multiplier
• Trimmed 1.5% Internal Band Gap Reference
• Under Voltage Lockout with 3V of Hysteresis
• Totem Pole Output With High State Clamp
• Low Start-up and Operating Current
• 8-Pin DIP or 8-Pin SOP




Application

• Electronic Ballast
• SMPS




Pinout

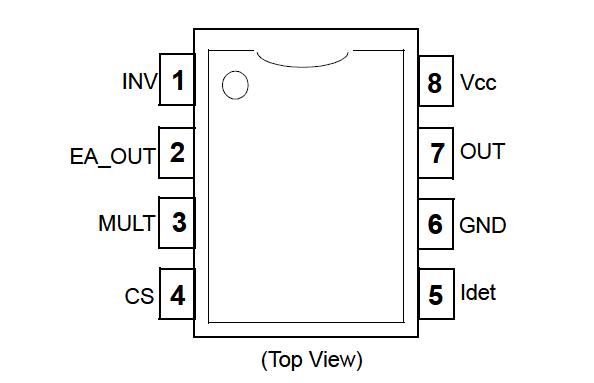

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN7527BMX Full Production RoHS Compliant $0.56 SOIC 8 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FAN7527 Line 3: B
FAN7527BN Full Production RoHS Compliant $0.56 DIP 8 RAIL TBD N/A
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN7527B is available. Click here for more information .


Characteristics Symbo Value Unit
Supply Voltage VCC 30 V
Peak Drive Output Current IOH,IOL ±500 mA
Driver Output Clamping Diodes Vo > Vcc or Vo < -0.3V lclamp ±10 mA
Detector Clamping Diodes ldet ±10 mA
Error Amp, Multiplier and Comparator Input Voltages Vin -0.3 to 6 V
Operating Junction Temperature Tj 150 °C
Operating Temperature Range Topr -25 to 125 °C
Storage Temperature Range Tstg -65 to 150 °C
Power Dissipation Pd 0.8 W





Description

The FAN7527B provides simple and high performance active power factor correction. The FAN7527B is optimized for electronic ballasts and low power and high density power supplies which require minimum board size, reduced external components and low power dissipation. Because the R/C filter is included in the current sense block, the external R/C filter is not necessary. Special circuitry has also been added to prevent no load runaway conditions. Regardless of the supply voltage, the output drive clamping circuit limits the overshoot of the power MOSFET gate drive. It greatly enhances the system reliability.
