FAN7532

Features: • Floating Channel Designed for Bootstrap Operation to +600V. • Lower di/dt Gate Driver for Better Noise Immunity• Driver Current Capability: 250mA/500mA• Low Start-up and Operating Current: 120µA, 6.4mA• Under Voltage Lock Out (UVLO) with 1.8V of Hyst...

product image

FAN7532 Picture
See larger image
SeekIC No. : 004340490 Detail

FAN7532: Features: • Floating Channel Designed for Bootstrap Operation to +600V. • Lower di/dt Gate Driver for Better Noise Immunity• Driver Current Capability: 250mA/500mA• Low Start...

FAN7532 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN7532
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Floating Channel Designed for Bootstrap Operation to +600V.
• Lower di/dt Gate Driver for Better Noise Immunity
• Driver Current Capability: 250mA/500mA
• Low Start-up and Operating Current: 120µA, 6.4mA
• Under Voltage Lock Out (UVLO) with 1.8V of Hysteresi
• Programmable Preheat Time and Frequency
• Programmable Run Frequency
• Protection from Failure to Strike
• Lamp Filament Sensing and Protection
• Automatic Restart for Lamp Exchange
• High Accuracy Oscillator
• 16-Pin SOP




Application

• General Purpose Ballast IC




Pinout

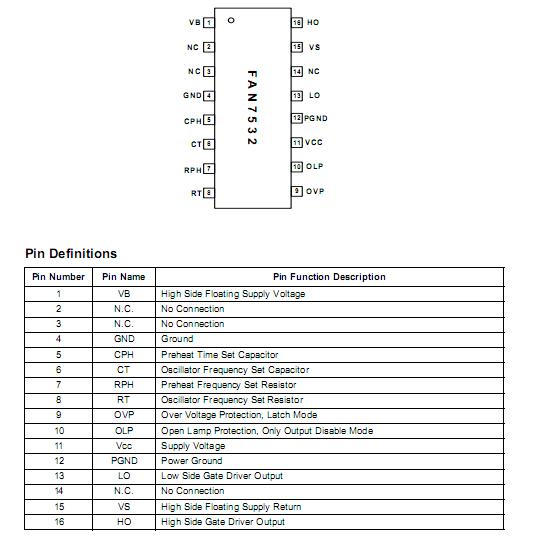

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing
FAN7532MX Full Production RoHS Compliant $1.67 SOP 16 TAPE REEL TBD
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples


Parameter Symbol Value Unit
Supply voltage(See Caution Below) ICC 25 mA
High Side Floating Supply Offset Voltage VS VB-25 toVB+0.3 V
High Side Floating Supply Voltage VB -0.3 to 625 V
High Side Floating Output Voltage, HO VHO VS-0.3 to VS+0.3
Drive Output Source Current IOH 250 mA
Drive Output Sink Current IOL 500 mA
CPH, CT, RT, and RPH Pins Input Voltage VIN -0.3 to 6 V
Allowable Offset Voltage Slew Rate dVS/dt 50 V/ns
Operating Temperature Range Topr -25 to 125 °C
Storage Temperature Range Tstg -65 to 150 °C
Power Dissipation 16-SOP Pd 0.94 W
Thermal Resistance (Junction-to-Air) Rja 100 °C/W





Description

The FAN7532 provides simple and high performance electronic ballast control functions. Optimized for an electronic ballast, the FAN7532 requires a minimum board area, and reduces component counts. The FAN7532 is intended to drive two power MOSFETs in the classical half-bridge topology with all the features needed to properly drive and control a fluorescent lamp. The FAN7532 has many comprehensive protection features that work through filament failure, failure of a lamp to strike, and automatic restarts. A dedicated timing section in the FAN7532 allows the user to set the necessary parameters to preheat, ignite, and run the lamp properly.
