FAN8025G3

Features: • 2-Channel BTL drivers with current feedback• 2-Channel BTL DC motor drivers• 1-Channel Logic input loading driver• Built-in thermal shutdown circuit• Built-in mute circuit• Operating supply voltage: 4.5~13.2VApplication• Compact disk ROM (CD-RO...

product image

FAN8025G3 Picture
See larger image
SeekIC No. : 004340518 Detail

FAN8025G3: Features: • 2-Channel BTL drivers with current feedback• 2-Channel BTL DC motor drivers• 1-Channel Logic input loading driver• Built-in thermal shutdown circuit• Built-...

FAN8025G3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8025G3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2-Channel BTL drivers with current feedback
• 2-Channel BTL DC motor drivers
• 1-Channel Logic input loading driver
• Built-in thermal shutdown circuit
• Built-in mute circuit
• Operating supply voltage: 4.5~13.2V


Application

• Compact disk ROM (CD-ROM)
• Digital video disk player (DVDP)
• Video compact disk player(VCDP)
• Other compact disk media

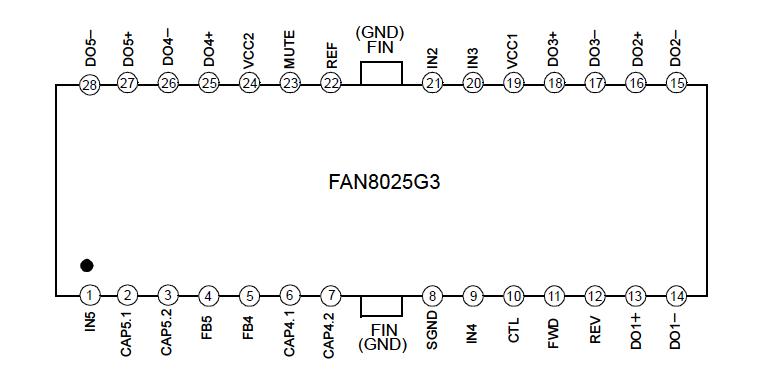

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Remark
Maximum supply voltage VCC1,2max 15 V
Power dissipation PD 2.5note W
Operating temperature range TOPR -35 ~ +85 °C
Storage temperature range TSTG -55 ~ +150 °C
NOTE:
      1. When mounted on a 50mm * 50mm * 1mm PCB (Phenolic resin material).
      2. This is experimental data.
      3. Power dissipation decrease rate : -20mW/°C(Ta>25°C).
      4. Should not exceed PD and SOA (Safe Operating Area).


Description

The FAN8025G3 is a monolithic IC, suitable for 2-ch BTL DC motor drivers, 2-ch motor drivers with current feedback which drive the focus and the tracking actuator and 1-ch logic input loading driver.
