FAN8042

Motor / Motion / Ignition Controllers & Drivers

product image

FAN8042 Picture
See larger image
SeekIC No. : 00534182 Detail

FAN8042: Motor / Motion / Ignition Controllers & Drivers

FAN8042 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8042
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : 5 Channel Motor Driver Operating Supply Voltage : 18 V
Supply Current : 30 mA Mounting Style : SMD/SMT
Package / Case : QFP-48 Packaging : Tray

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tray
Supply Current : 30 mA
Operating Supply Voltage : 18 V
Package / Case : QFP-48
Type : 5 Channel Motor Driver


Features:

• 4-CH balanced transformerless (BTL) driver
• 1-CH (forward reverse) control DC motor driver
• Operating supply voltage (4.5 V ~ 13.2 V)
• Built in thermal shut down circuit (TSD)
• Built in channel mute circuit
• Built in power save mode circuit
• Built in TSD monitor circuit
• Built in 2-OP AMPs


Application

• Compact disk player
• Video compact disk player
• Car compact disk player
• Digital video disk player


Pinout

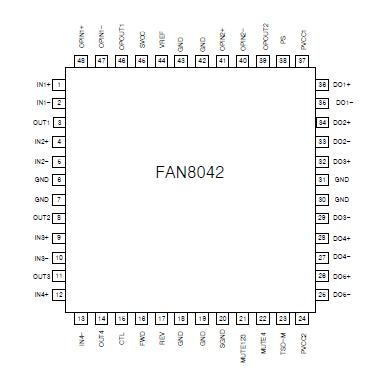

Connection Diagram


Specifications

Parameter Symbol Value Unit
Maximum Supply Voltage SVCCMAX 18 V
PVCC1 18 V
PVCC2 18 V
Power Dissipation PD 2.3note W
Operating Temperature TOPR −35 ~ +85 °C
Storge Temperature TSTG −55 ~ +150 °C
Maximum Output Current IOMAX 1 A
Notes:
1. When mounted on 70mm × 70mm × 1.6mm PCB
2. Power dissipation reduces 24mW/°C for using above TA = 25°C
3. Do not exceed PD and SOA


Description

The FAN8042 is a monolithic integrated circuit suitable for a 5-CH motor driver which drives the tracking actuator, focus actuator, sled motor, spindle motor, and tray motor of the CDP/CAR-CD/DVDP systems.
