Part Number: FDB5800



MFG: TO-263(D2PAK)

Package Cooled: 7850

D/C: FAIRCHILD



Urgent Purchase

FDB5800 Maximum Ratings

Symbol Parameter Ratings Units
VDSS Drain to Source Voltage 60 V
VGS
Gate to Source Voltage
±20		 V
ID
 Drain Current
Continuous (TC < 102, VGS = 10V)
80 A
Continuous (TC < 90, VGS = 5V)
80 A
Continuous (Tamb = 25, VGS = 10V, with RJA = 43/W)  14 A
Pulsed
Figure 4		 A
EAS Single Pulse Avalanche Energy (Note 1) 652 mJ
PD
 Power dissipation 242 W
Derate above 25 1.61 W/
TJ , TSTG
 		 Operating and Storage Temperature -55 to 175

FDB5800 Features

*rDS(ON)  = 5.5m? (Typ.), VGS = 5V, ID  = 80A
*High performance trench technology for extermely low Rdson
*Low Gate Charge
*High power and current handling capability
*Qualified to AEC Q101
*RoHS Compliant



FDB5800 Typical Application

Motor/ Body Load Control
ABS Systems
Power Train Management
Injection Systems
DC-DC Converters and Off-Line UPS

FDB5800 datasheet

FDB5800
PDF/DataSheet Download

  • Datasheet: FDB5800
  • File Size: 255776 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find FDB5800 Suppliers

  • ·FDB035AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 80A, 3.5mз
  • 242063 KB
  • FDB035AN06A0 Datasheet Download
  • ·FDB045AN08
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
  • 246234 KB
  • FDB045AN08 Datasheet Download
  • ·FDB045AN08A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel UltraFET Trench MOSFET 75V, 80A, 4.5mз
  • 246234 KB
  • FDB045AN08A0 Datasheet Download
  • ·FDB050AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET
  • 577561 KB
  • FDB050AN06A0 Datasheet Download
  • ·FDB060AN08A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 75V, 80A, 6.0mз
  • 258727 KB
  • FDB060AN08A0 Datasheet Download
  • ·FDB070AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 80A, 7m
  • 614008 KB
  • FDB070AN06A0 Datasheet Download
  • ·FDB10AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 75A, 10.5mз
  • 271594 KB
  • FDB10AN06A0 Datasheet Download
  • ·FDB13AN06A0
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel PowerTrench MOSFET 60V, 62A, 13.5mohm
  • 307282 KB
  • FDB13AN06A0 Datasheet Download

Related Part Number

FDB5800 Relative Products

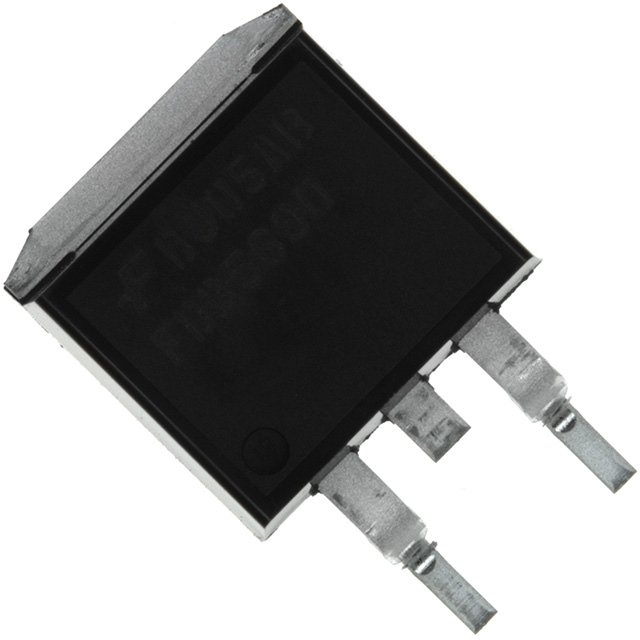

  • FDB5690

    FDB5690

    This FDB5690 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.These MOSFETs FDB5690 feature faster switching and lower gate charge than ot...

  • FDB5645

    FDB5645

    This FDB5645 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.These MOSFETs FDB5645feature faster switching and lower gate charge than oth...

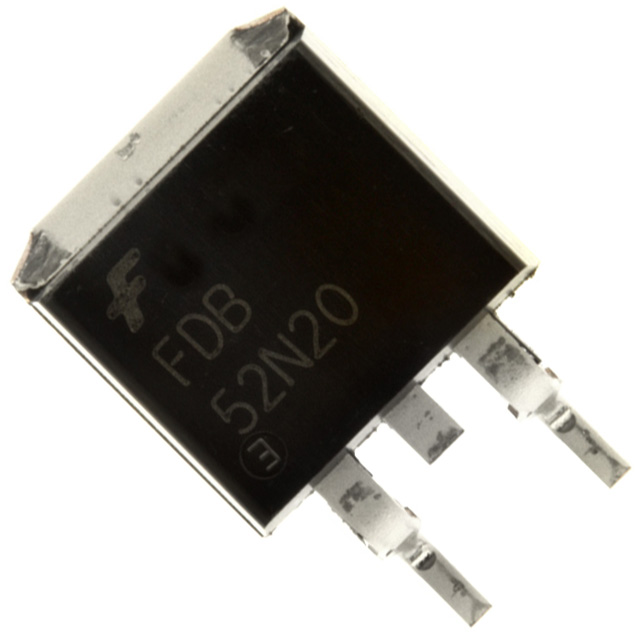

  • FDB52N20TM
