FDC6325L

Power Driver ICs SSOT-6 LOAD SW 8V

product image

FDC6325L Picture
See larger image
SeekIC No. : 00536486 Detail

FDC6325L: Power Driver ICs SSOT-6 LOAD SW 8V

FDC6325L Data Sheet

floor Price/Ceiling Price

US $ .17~.34 / Piece | Get Latest Price
Part Number:
FDC6325L
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.34
  • $.27
  • $.19
  • $.17
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : MOSFET Gate Drivers Supply Voltage - Max : 8 V
Supply Voltage - Min : 2.5 V Maximum Power Dissipation : 700 mW
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SuperSOT-6 Packaging : Reel

Description

Type :
Rise Time :
Fall Time :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Reel
Product : MOSFET Gate Drivers
Maximum Operating Temperature : + 150 C
Supply Voltage - Min : 2.5 V
Supply Voltage - Max : 8 V
Maximum Power Dissipation : 700 mW
Package / Case : SuperSOT-6


Features:

·VDROP=0.2V @ VIN=5V, IL=1.5A. R(ON) = 0.13W VDROP=0.2V @ VIN=3.3V, IL=1.2A. R(ON) = 0.16W VDROP=0.2V @ VIN=2.5V, IL=1A. R(ON) = 0.18W.
·SuperSOTTM-6 package design using copper lead frame for superior thermal and electrical capabilities.




Pinout

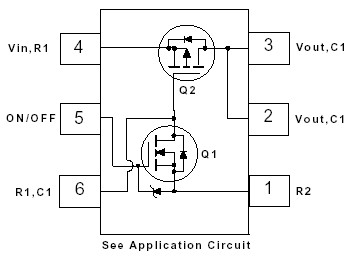

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FDC6325L Full Production RoHS Compliant $0.28 SSOT-6 6 TAPE REEL Line 1: &E&Y (Binary Calendar Year Coding)
Line 2: .325
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDC6325L is available. Click here for more information .


Symbol
Parameter
NDS9936
Units
VDSS
VGSS
 Drain-Source Voltage
Gate-Source Voltage
2.5 - 8
1.5 - 8
1.8
5
0.7
-55 to 150
6
V
V
A

W
°C
kV
ID
 Drain Current Continuous
Pulsed		 (Note 1)
(Note 1 & 3)
PD
 Maximum Power Dissipation (Note 2)
TJ,TSTG
ESD		 Operating and Storage Junction Temperature Range
Electrostatic Discharge Rating MIL-STD-883D Human Body
Model (100pf/1500Ohm)

THERMAL CHARACTERISTICS
RJA
RJC		 Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case		 (Note 1a)
(Note 1)
180
60
 °C/W
°C/W





Description

This device FDC6325L is particularly suited for compact power management in portable electronic equipment where 2.5V to 8V input and 1.8A output current capability are needed. This load switch integrates a small N-Channel power MOSFET (Q1) which drives a large P-Channel power MOSFET (Q2) in one tiny SuperSOT™-6 package.






Parameters:

Technical/Catalog InformationFDC6325L
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
TypeHigh Side Switch
Number of Outputs1
Voltage - Input2.5 ~ 8 V
Package / CaseSuperSOT-6
PackagingTape & Reel (TR)
Current Limit1.8A
Internal Switch(s)Yes
Operating Temperature-55°C ~ 150°C
Rds (On)130 mOhm
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDC6325L
FDC6325L
