FDR4420A

MOSFET SSOT-8 N-CH 30V

product image

FDR4420A Picture
SeekIC No. : 00161906 Detail

FDR4420A: MOSFET SSOT-8 N-CH 30V

floor Price/Ceiling Price

Part Number:
FDR4420A
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 11 A
Resistance Drain-Source RDS (on) : 0.009 Ohms Configuration : Single Quint Drain Dual Source
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SSOT-8 Packaging : Reel

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Continuous Drain Current : 11 A
Resistance Drain-Source RDS (on) : 0.009 Ohms
Package / Case : SSOT-8
Configuration : Single Quint Drain Dual Source


Features:

·11 A, 30 V. RDS(ON) = 0.009 W @ VGS = 10 V,
·RDS(ON) = 0.013 W @ VGS = 4.5 V.
·Fast switching speed.
·Low gate charge.
·Small footprint 38% smaller than a standard SO-8.
·Low profile package(1mm thick).
·Power handling capability similar to SO-8.



Pinout

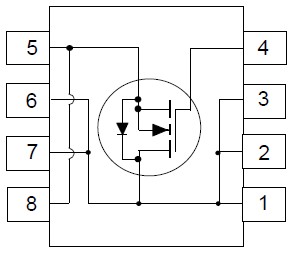

  Connection Diagram


Specifications

Symbol
Parameter
Ratings
Units
VDSS
Drain-Source Voltage
30
V
VGSS
Gate-Source Voltage
±20
V
ID
Draint Current - Continuous (Note 1)
11
A
- Pulsed
40
PD
Maximum Power Dissipation (Note 1a)
1.8
W
(Note 1b)
1
(Note 1c)
0.9
TJ, TSTG
Operating and Storage Junction Temperature Range
-55 to +150
°C



Description

The SuperSOT-8 family of N-Channel Logic Level MOSFETs FDR4420A have been designed to provide a low profile, small footprint alternative to industry standard SO-8 little foot type product.

These MOSFETs FDR4420A are produced using Fairchild Semiconductor's  advanced PowerTrench process that has been tailored to  minimize the on-state resistance and yet maintain superior switching performance.

These devices FDR4420A are well suited for low voltage and battery powered applications where small package size is required without compromising power handling and fast switching.






Parameters:

Technical/Catalog InformationFDR4420A
VendorFairchild Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C11A
Rds On (Max) @ Id, Vgs9 mOhm @ 11A, 10V
Input Capacitance (Ciss) @ Vds 2560pF @ 15V
Power - Max900mW
PackagingCut Tape (CT)
Gate Charge (Qg) @ Vgs33nC @ 5V
Package / CaseSSOT-8
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDR4420A
FDR4420A
FDR4420ACT ND
FDR4420ACTND
FDR4420ACT
