FDS2070N3

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 150 V
Package / Case : SOIC-8
Configuration : Single Triple Source
Resistance Drain-Source RDS (on) : 0.078 Ohms
Continuous Drain Current : 4.1 A


Features:

• 4.1 A, 150 V. R_DS(ON) = 78 m @ V_GS = 10 V
                        R_DS(ON) = 88 m @ V_GS = 6.0 V
• High performance trench technology for extremely low R_DS(ON)
• High power and current handling capability
• Fast switching, low gate charge (38nC typical)
• FLMP SO-8 package: Enhanced thermal performance in industry-standard package size


Application

• Synchronous rectifier
• DC/DC converter

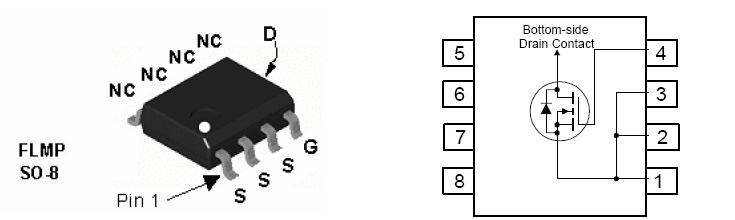

Pinout




Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain-Source Voltage	150	V
VGSS	Gate-Source Voltage	± 20
ID	Drain Current Continuous (Note 1a)               Pulsed	4.1	A
		30
PD	Power Dissipation for Single Operation (Note 1a)                                      (Note 1b)	3.0	W
		1.8
TJ, TSTG	Operating and Storage Junction Temperature Range	55 to +150	°C

Description

This FDS2070N3 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. FDS2070N3 has been optimized for "low side" synchronous rectifier operation, providing an extremely low R_DS(ON) in a small package.


Parameters:

Technical/Catalog Information	FDS2070N3
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25° C	4.1A
Rds On (Max) @ Id, Vgs	78 mOhm @ 4.1A, 10V
Input Capacitance (Ciss) @ Vds	1884pF @ 75V
Power - Max	1.8W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	53nC @ 10V
Package / Case	8-SOIC
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS2070N3 FDS2070N3 FDS2070N3CT ND FDS2070N3CTND FDS2070N3CT
