FDS3601

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Maximum Operating Temperature : + 175 C
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 100 V
Configuration : Dual Dual Drain
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 0.48 Ohms
Continuous Drain Current : 1.3 A


Features:

• 1.3 A, 100 V. R_DS(ON) = 480 m @ V_GS = 10 V
                        R_DS(ON) = 530 m @ V_GS = 6 V
• Fast switching speed
• Low gate charge (3.7nC typical)
• High performance trench technology for extremely low R_DS(ON)
• High power and current handling capability

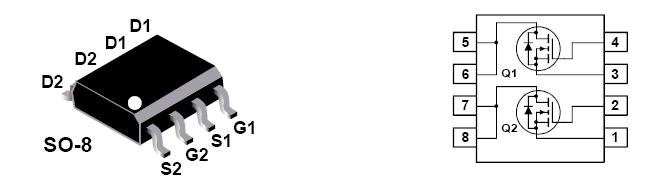

Pinout




Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain-Source Voltage	100	V
VGSS	Gate-Source Voltage	± 20
ID	Drain Current Continuous (Note 1a)             Pulsed	1.3	A
		6
PD	Power Dissipation for Dual Operation	2	W
	Power Dissipation for Single Operation (Note 1a)                                      (Note 1b)                                      (Note 1c)	1.6
		1.0
		0.9
TJ, TSTG	Operating and Storage Junction Temperature Range	55 to +150	°C

Description

These FDS3601 N-Channel MOSFETs have been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.These MOSFETs FDS3601 feature faster switching and lower gate charge than other MOSFETs with comparable R_DS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.

Parameters:

Technical/Catalog Information	FDS3601
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	1.3A
Rds On (Max) @ Id, Vgs	480 mOhm @ 1.3A, 10V
Input Capacitance (Ciss) @ Vds	153pF @ 50V
Power - Max	900mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	5nC @ 10V
Package / Case	SO-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS3601 FDS3601
