FDS3690

MOSFET SO-8 N-CH 100V

product image

FDS3690 Picture
SeekIC No. : 00161497 Detail

FDS3690: MOSFET SO-8 N-CH 100V

floor Price/Ceiling Price

Part Number:
FDS3690
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 100 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 4.2 A
Resistance Drain-Source RDS (on) : 0.064 Ohms Configuration : Single Quad Drain Triple Source
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow Packaging : Reel

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 100 V
Maximum Operating Temperature : + 150 C
Configuration : Single Quad Drain Triple Source
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 0.064 Ohms
Continuous Drain Current : 4.2 A


Features:

• 5 A, 100 V. RDS(ON) = 0.059 @ VGS = 10 V
                     RDS(ON) = 0.066 @ VGS = 6 V
• Fast switching speed.
• Low gate charge
• High performance trench technology for extremely low RDS(ON)
• High power and current handling capability.



Application

• DC/DC converter
• Motor Driver



Pinout

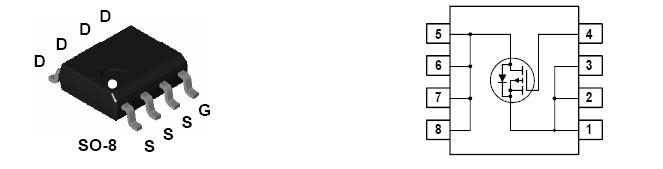

  Connection Diagram


Specifications

Symbol Parameter
Ratings
Units
VDSS Drain-Source Voltage
100
V
VGSS Gate-Source Voltage
± 20
ID

Drain Current Continuous (Note 1a)
               Pulsed
5
A
40
PD

Power Dissipation for Single Operation (Note 1a)
                                    (Note 1b)
                                    (Note 1c)
2.5
W
1.2
1.0
TJ, TSTG Operating and Storage Junction Temperature Range
55 to +150
°C



Description

This FDS3690 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. These MOSFETs FDS3690 feature faster switching and lower gate charge than other MOSFETs with  comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies),and DC/DC power supply designs with higher overall efficiency.
