FDS6912

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Continuous Drain Current : 6 A
Configuration : Dual Dual Drain
Package / Case : SOIC-8 Narrow
Gate-Source Breakdown Voltage : +/- 25 V
Resistance Drain-Source RDS (on) : 0.024 Ohms


Features:

• 6 A, 30 V. R_DS(ON) = 0.028 @ V_GS = 10 V
                   R_DS(ON) = 0.042 @ V_GS = 4.5 V.
• Optimized for use in switching DC/DC converters with PWM controllers
• Very fast switching.
• Low gate charge

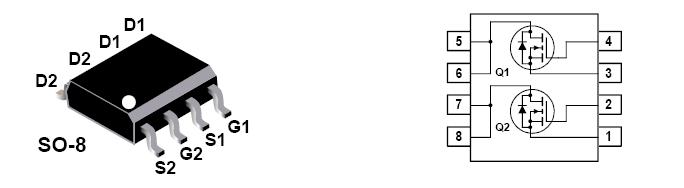

Pinout




Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain-Source Voltage	30	V
VGSS	Gate-Source Voltage	±20	V
ID	Drain Current   Continuous (Note 1a)               Pulsed	6	A
		20
PD	Power Dissipation for Dual Operation	2	W
	Power Dissipation for Single Operation (Note 1a)                                       (Note 1b)                                       (Note 1c)	1.6
		1
		0.9
TJ, TSTG	Operating and Storage Junction Temperature Range	55 to +150	°C

Description

These FDS6912 N-Channel Logic Level MOSFETs have been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. These MOSFETs FDS6912 feature faster switching and lower gate charge than other MOSFETs with comparable R_DS(ON) specifications.The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.

Parameters:

Technical/Catalog Information	FDS6912
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	6A
Rds On (Max) @ Id, Vgs	28 mOhm @ 6A, 10V
Input Capacitance (Ciss) @ Vds	740pF @ 15V
Power - Max	900mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	10nC @ 5V
Package / Case	SO-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS6912 FDS6912
