Part Number: FDS9926A



MFG: FAIRC

Package Cooled: SOP-8

D/C: 09+

Description: These N-Channel 2.5V specified MOSFETs use Fairchild Semiconductor's advanced PowerTrench process. It ...


Urgent Purchase

FDS9926A General Description


These N-Channel 2.5V specified MOSFETs use Fairchild Semiconductor's advanced PowerTrench process. It has been optimized for power management applications with a wide range of gate drive voltage (2.5V 10V).

FDS9926A Maximum Ratings

Symbol Parameter
Ratings
Units
VDSS Drain-Source Voltage
20
V
VGSS Gate-Source Voltage
±10
ID
 Drain Current
Continuous (Note 1a)
Pulsed
6.5
A
20
PD

Power Dissipation for Dual Operation
2
W
Power Dissipation for Single Operation

 (Note 1a)
(Note 1b)
(Note 1c)
1.6
1
0.9
TJ, TSTG Operating and Storage Junction Temperature Range
55 to +150
°C

FDS9926A Features

• 6.5 A, 20 V. RDS(ON) = 0.030 @ VGS = 4.5 V
                     RDS(ON) = 0.043 @ VGS = 2.5 V.
• Optimized for use in battery protection circuits
• ±10 VGSS allows for wide operating voltage range
• Low gate charge

FDS9926A Typical Application

• Battery protection
• Load switch
• Power management

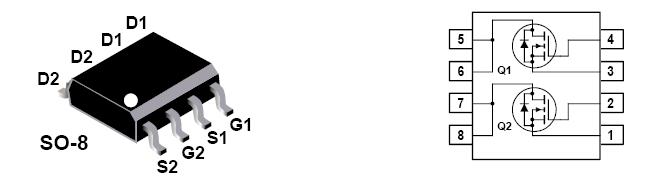

FDS9926A Connection Diagram

FDS9926A Connection Diagram
