FDW2601NZ

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Gate-Source Breakdown Voltage : +/- 12 V
Continuous Drain Current : 8.2 A
Package / Case : TSSOP-8
Resistance Drain-Source RDS (on) : 0.015 Ohms
Configuration : Dual Common Dual Drain Dual Source


Features:

8.2A, 30V   r_DS(ON)  = 0.015V_GS  = 4.5V
                     r_DS(ON)  = 0.020V_GS  = 2.5V
Extended VGS range ( ±12 V) for battery applications
HBM ESD Protection Level of 3.5kV Typical (note 3)
High performance trench technology for extremely low rDS(ON)
Low profile TSSOP-8 package


Application

Load switch
Battery charge
Battery disconnect circuits

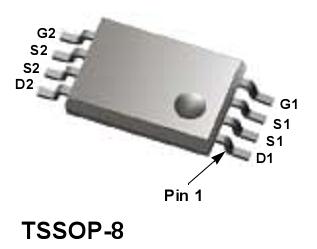

Pinout




Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain to Source Voltage	30	V
VGS	Gate to Source Voltage	±12	V
ID	Drain Current Continuous (TC = 25, VGS = 4.5V, RJA = 77 /W)	8.2	A
	Continuous (TC = 100, VGS = 2.5V, RJA = 77 /W)	4.5	A
	Pulsed	Figure 4	A
PD	Power dissipation	1.6	W
	Derate above 25°C	13	mW/
TJ , TSTG	Operating and Storage Temperature	-55 to 150

Description

This FDW2601NZ N-Channel MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance
and yet maintain low gate charge for superior switching performance. These devices are well suited for portable electronics  applications.


Parameters:

Technical/Catalog Information	FDW2601NZ
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	8.2A
Rds On (Max) @ Id, Vgs	15 mOhm @ 8.2A, 4.5V
Input Capacitance (Ciss) @ Vds	1840pF @ 15V
Power - Max	1.6W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	30nC @ 4.5V
Package / Case	8-TSSOP
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDW2601NZ FDW2601NZ
