FDW9926A

MOSFET 20V/10V Dual NCh

product image

FDW9926A Picture
SeekIC No. : 00160949 Detail

FDW9926A: MOSFET 20V/10V Dual NCh

floor Price/Ceiling Price

Part Number:
FDW9926A
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V Continuous Drain Current : 4.5 A
Resistance Drain-Source RDS (on) : 32 m Ohms Configuration : Dual Dual Source
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : TSSOP-8 Packaging : Reel

Description

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V
Continuous Drain Current : 4.5 A
Package / Case : TSSOP-8
Configuration : Dual Dual Source
Resistance Drain-Source RDS (on) : 32 m Ohms


Features:

4.5 A, 20 V. RDS(ON) = 32 m@ VGS = 4.5 V
                      RDS(ON) = 45 m@ VGS = 2.5 V
Optimized for use in battery circuit applications
Extended VGSS range (±10V) for battery applications
High performance trench technology for extremely low RDS(ON)
Low profile TSSOP-8 package



Application

Battery protection
Load switch
Power management



Pinout

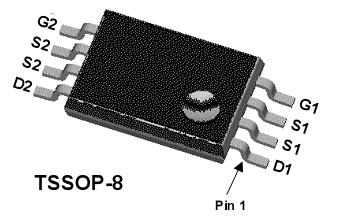

  Connection Diagram


Specifications

Symbol Parameter Ratings Units
VDSS Drain-Source Voltage 20 V
VGSS Gate-Source Voltage ±10 V
ID Drain Current Continuous (Note 1a)
Pulsed
4.5 A
30
PD Total Power Dissipation (Note 1a)
(Note 1b)
1.0 W
0.6
TJ, TSTG Operating and Storage Junction Temperature Range 55 to +150



Description

This N-Channel 2.5V specified MOSFET FDW9926A is a rugged gate version of Fairchild's Semiconductor's advanced PowerTrench process. FDW9926A has been optimized for power
management applications with a wide range of gate drive voltage (2.5V 10V).


Parameters:

Technical/Catalog InformationFDW9926A
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C4.5A
Rds On (Max) @ Id, Vgs32 mOhm @ 4.5A, 4.5V
Input Capacitance (Ciss) @ Vds 630pF @ 10V
Power - Max600mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs9nC @ 4.5V
Package / Case8-TSSOP
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDW9926A
FDW9926A
