Features: • Greater than 400Mbs data rate• 3.3V power supply operation• 0.4ns maximum differential pulse skew• 2.0ns maximum propagation delay• Low power dissipation• Power OFF protection• Meets or exceeds the TIA/EIA-644 LVDS standard• Pin compatibl...

product image

FIN1031 Picture
SeekIC No. : 004341619 Detail

FIN1031: Features: • Greater than 400Mbs data rate• 3.3V power supply operation• 0.4ns maximum differential pulse skew• 2.0ns maximum propagation delay• Low power dissipation...

floor Price/Ceiling Price

Part Number:
FIN1031
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Greater than 400Mbs data rate
• 3.3V power supply operation
• 0.4ns maximum differential pulse skew
• 2.0ns maximum propagation delay
• Low power dissipation
• Power OFF protection
• Meets or exceeds the TIA/EIA-644 LVDS standard
• Pin compatible with equivalent RS-422 and LVPECL devices
• 16-Lead SOIC and TSSOP packages save space

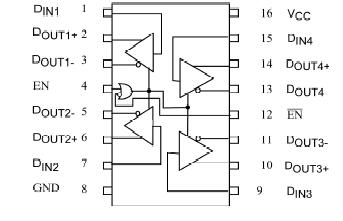

Pinout






Specifications

Supply Voltage (VCC) ..........................................−0.5V to +4.6V
DC Input Voltage (VIN)
@VCC 3V ........................................................−0.5V to +6V
@VCC = 0V .....................................................−0.5V to +4.6V
DC Output Voltage (VOUT)
@VCC = 0V .....................................................−0.5V to +4.6V
Driver Short Circuit Current (IOSD).......................... Continuous
Storage Temperature Range (TSTG) ............−65°C to +150°C
Max Junction Temperature (TJ)....................................... 150°C
Lead Temperature (TL)
(Soldering, 10 seconds).................................................. 260°C
ESD (Human Body Model) ............................................ 8000V
ESD (Machine Model) ..................................................... 600V





Description

This quad driver of FIN1031 is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology.The driver translates LVTTL signal levels to LVDS levels with a typical differential output swing of 350mV which provides low EMI at ultra low power dissipation even at high frequencies. FIN1031 is ideal for high speed transfer of clock and data.

The FIN1031 can be paired with its companion receiver,the FIN1032, or any other Fairchild LVDS receiver.
