Product Details

Description



Features:

• Greater than 800 Mbps full differential path
• 3.3V power supply operation
• 3.5 ps maximum random jitter and 135 ps maximum deterministic jitter
• Wide rail-to-rail common mode range
• LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly
• Ultra low power consumption
• 20 ps typical channel-to-channel skew
• Power off protection
• > 7 kV HBM ESD Protection
• Meets or exceeds the TIA/EIA-644-A LVDS standard
• 14-lead TSSOP package saves space
• Open circuit fail safe protection
• VBB reference output


Pinout

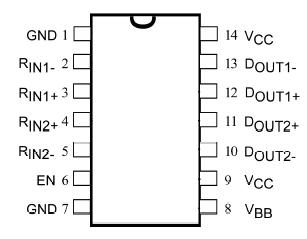

Connection Diagram


Specifications

Supply Voltage (VCC) ...........................................−0.5V to +4.6V
LVDS DC Input Voltage (VIN) ...............................−0.5V to +4.6V
LVDS DC Output Voltage (VOUT) ..........................−0.5V to +4.6V
Driver Short Circuit Current (IOSD) .................Continuous 10 mA
Storage Temperature Range (TSTG) ..............−65°C to +150°C
Max Junction Temperature (TJ) .........................................150°C
Lead Temperature (TL)
(Soldering, 10 seconds) ...................................................260°C
ESD (Human Body Model) ..................................................7000V
ESD (Machine Model) ...........................................................300V


Description

This 2 port repeater is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The FIN1102 accepts and outputs LVDS levels with a typical differential output swing of 330 mV which provides low EMI at ultra low power dissipation even at high frequencies. The FIN1102 provides a VBB reference for AC coupling on the inputs. In addition the FIN1102 can also directly accept LVPECL, HSTL, and SSTL-2 for translation to LVDS.
