Part Number: FMG2G150US60



MFG: FAIRCHILD



D/C: 2IGBT: 150A600V

Description: Fairchild IGBT Power Module provides low conduction and switching losses as well as short circuit rugg...


Urgent Purchase

FMG2G150US60 General Description


Fairchild IGBT Power Module provides low conduction and switching losses as well as short circuit ruggedness. It's designed for the applications such as motor control, uninterrupted power supplies (UPS) and general inverters where short-circuit ruggedness is required.

FMG2G150US60 Maximum Ratings

Symbol Description FMG2G150US60 Units
VCES Collector-Emitter Voltage 600 V
VGES Gate-Emitter Voltage +20 V
IC Collector Current@ TC = 25°C 150 A
ICM(1) Pulsed Collector Current 300 A
IF Diode Continuous Forward Current @ TC = 100°C 150 A
IFM Diode Maximum Forward Current 300 A
TSC Short Circuit Withstand Time @ TC = 100°C 10 US
PD Maximum Power Dissipation @ TC = 25°C 595 W
TJ Operating Junction Temperature -40 to +150 °C
Tstg Storage Temperature Range -40 to +125 °C
Viso Isolation Voltage @ AC 1minute 2500 V
Mounting
Torque		 Power Terminals Screw : M5 4.0 N.m
Mounting Screw : M5 4.0 N.m
Notes :
(1) Repetitive rating : Pulse width limited by max. junction temperature

FMG2G150US60 Features

• Short Circuit Rated Time; 10us @ TC =100°C, VGE = 15V
• High Speed Switching
• Low Saturation Voltage : VCE(sat) = 2.1 V @ IC = 150A
• High Input Impedance
• Fast & Soft Anti-Parallel FWD
• UL Certified No.E209204

FMG2G150US60 Typical Application

• AC & DC Motor Controls
• General Purpose Inverters
• Robotics
• Servo Controls
• UPS

FMG2G150US60 datasheet

FMG2G150US60
PDF/DataSheet Download

  • Datasheet: FMG2G150US60
  • File Size: 731284 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find FMG2G150US60 Suppliers

  • ·FMG11A
  • ROHM [Rohm]
  • Emitter common (dual digital transistors)
  • 58399 KB
  • FMG11A Datasheet Download
  • ·FMG12
  • ROHM
  • Emitter common (dual digital transistors)
  • 39502 KB
  • FMG12 Datasheet Download
  • ·FMG-12S
  • SANKEN [Sanken electric]
  • Ultra-Fast-Recovery Rectifier Diodes
  • 19162 KB
  • FMG-12S Datasheet Download
  • ·FMG-13R
  • SANKEN [Sanken electric]
  • Ultra-Fast-Recovery Rectifier Diodes
  • 19162 KB
  • FMG-13R Datasheet Download
  • ·FMG-13S
  • SANKEN [Sanken electric]
  • Ultra-Fast-Recovery Rectifier Diodes
  • 19162 KB
  • FMG-13S Datasheet Download
  • ·FMG-13SR
  •
  • Ultra-Fast-Recovery Rectifier Diodes
  • 68795 KB
  • FMG-13SR Datasheet Download
  • ·FMG-14R
  • SANKEN [Sanken electric]
  • Ultra-Fast-Recovery Rectifier Diodes
  • 19162 KB
  • FMG-14R Datasheet Download
  • ·FMG-14S
  • SANKEN [Sanken electric]
  • Ultra-Fast-Recovery Rectifier Diodes
  • 19162 KB
  • FMG-14S Datasheet Download

Related Part Number

FMG2G150US60 Relative Products

  • FMG2G100US60

    FMG2G100US60

    Fairchild's Insulated Gate Bipolar Transistor (IGBT)FMG2G100US60 power modules provide low conduction and switching losses as well as short circuit ruggedness. FMG2G100US60 is designed for applications such as motor control, uninterrupted power supplies (UPS...

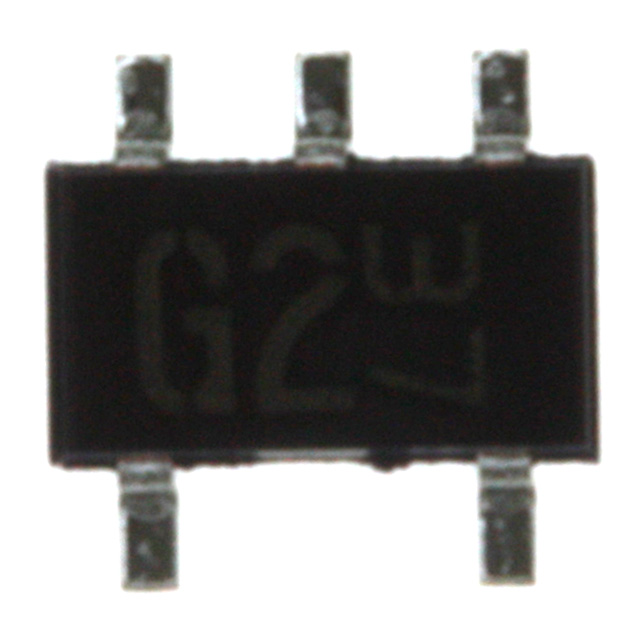

  • FMG2AT148
