General Description
FMS2014QFN General Description
The FMS2014QFN is a low loss, high power and linear single pole double throw Gallium Arsenide antenna switch designed for use in mobile handset applications. The die is fabricated using the Filtronic FL05 0.5m switch process technology, which offers excellent performance optimised for switch applications. The FMS2014QFN is designed for use in dual/tri and quad band GSM handset antenna switch modules and RF front-end modules. It can also find use in other applications where high power and linear RF switching is necessary.
FMS2014QFN Maximum Ratings
|
Parameter |
Symbol |
Absolute Maximum |
|
Max Input Power |
Pin |
+38dBm |
|
Control Voltage |
Vctrl |
+5V |
|
Operating Temperature |
Toper |
-40°C to +100°C |
|
Storage Temperature |
Tstor |
-55°C to +150°C |
FMS2014QFN Features
. 3x3x0.9mm Packaged pHEMT Switch
. Excellent low control voltage performance
. Excellent harmonic performance under
GSM/DCS/PCS/EDGE power levels
. Very high Tx-Rx isolation: >28dB typ. at 1.8GHz
. Very low Insertion loss: 0.5dB at 1.8GHz
. Very low control current
. Excellent low control voltage performance
. Excellent harmonic performance under
GSM/DCS/PCS/EDGE power levels
. Very high Tx-Rx isolation: >28dB typ. at 1.8GHz
. Very low Insertion loss: 0.5dB at 1.8GHz
. Very low control current

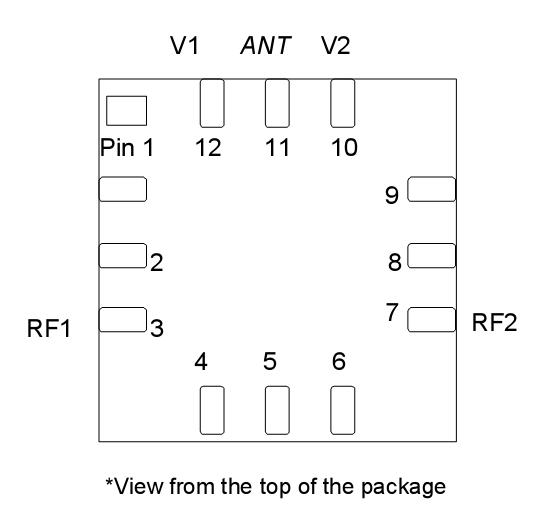

FMS2014QFN Connection Diagram
FMS2014QFN
PDF/DataSheet Download
- Datasheet: FMS2014QFN
- File Size: 191978 KB
- Manufacturer: FILTRONIC [Filtronic Compound Semiconductors]
- Click here to Download
