FSAB20PH60

Product :
Supply Current :
Packaging : Tube
Mounting Style : Through Hole
Type : Motor Driver
Operating Supply Voltage : 13.5 V to 16.5 V
Package / Case : SPM27-FA


Features:

Very low thermal resistance due to using DBC
600V-20A single-phase rectifier bridge diode including two IGBTs for partial switching converter
Integrated IC for gate driving and protection
Divided negative dc-link terminals for current sensing
Isolation rating of 2500Vrms/min.


Application

AC 187V ~ 276V single-phase partial-switching converter of air-conditioner

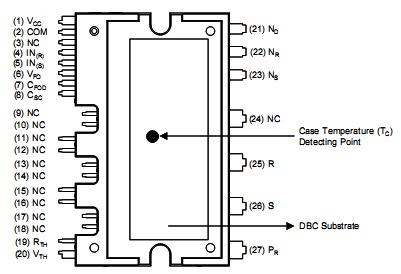

Pinout




Specifications

Symbol	Parameter	Conditions	Min.	Typ.	Max.	Units
Rth(j-c)Q	Junction to Case Thermal Resistance	Each IGBT under Operating Condition	-	-	2.8	/W
Rth(j-c)D		Each Diode under Operating Condition	-	-	2.6	/W

Description

FSAB20PH60 is an advanced smart power module of PSC(Par-tial Switching Converter) that Fairchild has newly developed and designed mainly targeting low-power application especially for an air conditioners. FSAB20PH60 combines optimized circuit protection and drive IC matched to IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection function.


Parameters:

Technical/Catalog Information	FSAB20PH60
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	Smart Power Module
Current - Supply	23mA
Voltage - Supply	13.5 V ~ 16.5 V
Package / Case	27-DIP
Packaging	Tube
Operating Temperature	-20°C ~ 100°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSAB20PH60 FSAB20PH60
