FSAM20SH60A

Maximum Gate Emitter Voltage :
Configuration :
Maximum Operating Temperature :
Collector- Emitter Voltage VCEO Max : 600 V
Packaging : Tube
Continuous Collector Current at 25 C : 20 A
Collector-Emitter Saturation Voltage : 2.5 V
Package / Case : SPM32-AA
Gate-Emitter Leakage Current : 59 W
Power Dissipation : 59 W


Features:

UL Certified No. E209204
600V-20A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Typical switching frequency of 15kHz
Built-in thermistor for over-temperature monitoring
Inverter power rating of 1.5kW / 100~253 Vac
Isolation rating of 2500Vrms/min.
Very low leakage current due to using ceramic substrate
Adjustable current protection level by varying series resistor value with sense-IGBTs




Application

AC 100V ~ 253V 3-phase inverter drive for small power(1.5kW) ac motor drives
Home appliances applications requiring high switching frequency operation like washing machines drive system
Application ratings:
- Power : 1.5kW / 100~253 Vac
- Switching frequency : Typical 15kHz (PWM Control)
- 100% load current : 8A (Irms)
- 150% load current : 12A (Irms) for 1 minute

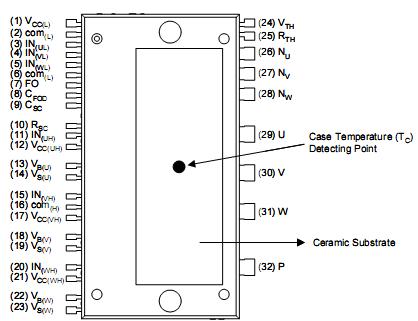

Pinout






Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FSAM20SH60A	Full Production	RoHS Compliant	$27.60	SPM32-AA P	32	RAIL	TBD	Line 1: $Y (Fairchild logo) Line 2: FSAM20SH60A Line 3: &H&E&E&E&E&E&3

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FSAM20SH60A is available. Click here for more information .

Item	Symbol	Condition	Rating	Unit
Supply Voltage	VPN	Applied between P-NU,NV,NW	450	V
Supply Voltage (Surge)	VPN(Surge)	Applied between P-NU,NV,NW	500	V
Collector-Emitter Voltage	VCES		600	V
Each IGBT Collector Current	±IC	TC=25	20	A
Each IGBT Collector Current	±IC	TC=100	14	A
Each IGBT Collector Current (Peak)	±ICP	TC=25 Instantaneous Value (Pulse)	40	A
Collector Dissipation	PC	TC=25 per One ChiP	59	W
Operating Junction Temperature	TJ	(Note 1)	-55 ~ 150

Description

FSAM20SH60A is an advanced smart power module(SPM) that Fairchild has newly developed and designed toprovide very compact and high performance ac motordrives mainly targeting high speed low-power inverterdrivenapplication like washing machines. FSAM20SH60A combinesoptimized circuit protection and drive matched to low-lossIGBTs. Highly effective short-circuit current detection/protection is realized through the use of advanced currentsensing IGBT chips that allow continuous monitoring of theIGBTs current. System reliability is further enhanced by thebuilt-in over-temperature monitoring and integrated undervoltagelock-out protection. The high speed built-in HVICprovides opto-coupler-less IGBT gate driving capability thatfurther reduce the overall size of the inverter system design.In addition the incorporated HVIC facilitates the use ofsingle-supply drive topology enabling the FSAM20SH60Ato be driven by only one drive supply voltage withoutnegative bias. Inverter current sensing application can beachieved due to the divided negative dc terminals.

Parameters:

Technical/Catalog Information	FSAM20SH60A
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	20A
Operating Temperature	-20°C ~ 100°C
Package / Case	SPM32AA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSAM20SH60A FSAM20SH60A
