FSBM30SH60A

Maximum Gate Emitter Voltage :
Configuration :
Maximum Operating Temperature :
Collector- Emitter Voltage VCEO Max : 600 V
Packaging : Tube
Collector-Emitter Saturation Voltage : 2.3 V
Continuous Collector Current at 25 C : 30 A
Gate-Emitter Leakage Current : +/- 250 nA
Package / Case : SPM32-AA
Power Dissipation : 62 W


Features:

• UL Certified No. E209204
• 600V-30A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
• Divided negative dc-link terminals for inverter current sensing applications
• Single-grounded power supply due to built-in HVIC
• Typical switching frequency of 15kHz
• Inverter power rating of 2.4kW / 100~253 Vac
• Isolation rating of 2500Vrms/min.
• Very low leakage current due to using ceramic substrate
• Adjustable current protection level by varying series resistor value with sense-IGBTs


Application

• AC 100V ~ 253V 3-phase inverter drive for small power (2.4kW) ac motor drives
• Home appliances applications requiring high switching frequency operation like washing machines drive system
• Application ratings:
- Power : 2.4kW / 100~253 Vac
- Switching frequency : Typical 15kHz (PWM Control)
- 100% load current : 11A (Irms)
- 150% load current : 16.5A (Irms) for 1 minute

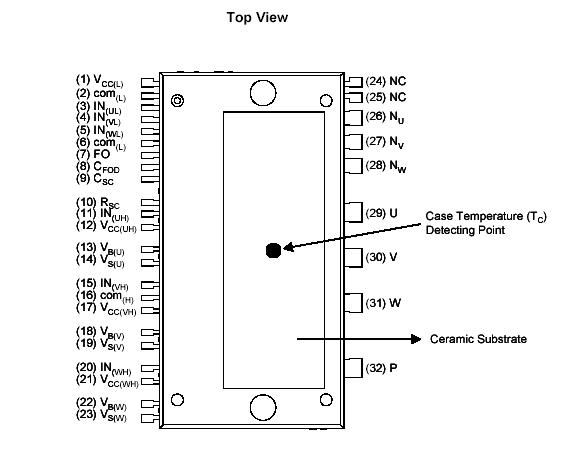

Pinout




Specifications

Item	Symbol	Condition	Rating	Unit
Supply Voltage	VPN	Applied between P- NU, NV, NW	450	V
Supply Voltage (Surge)	VPN(Surge)	Applied between P- NU, NV, NW	500	V
Collector-Emitter Voltage	VCES		600	V
Each IGBT Collector Current	± IC	TC = 25°C	30	A
Each IGBT Collector Current	± IC	TC = 100°C	15	A
Each IGBT Collector Current (Peak)	± ICP	TC = 25°C, Instantaneous Value (Pulse)	60	A
Collector Dissipation	PC	TC = 25°C per One Chip	62	W
Operating Junction Temperature	TJ	(Note 1)	-20~125	°C

Description

FSBM30SH60A is an advanced smart power module (SPM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting high speed low-power inverterdriven application like washing machines. FSBM30SH60A combines optimized circuit protection and drive matched to low-loss IGBTs.Highly effective short-circuit current detection/ protection is realized through the use of advanced current sensing IGBT chips that allow continuous monitoring of the IGBTs current. System reliability is further enhanced by the ntegrated under-voltage lock-out protection. The high speed built-in HVIC provides opto-coupler-less IGBT gate driving capability that further reduce the overall size of the inverter system design. In addition the incorporated HVICfacilitates the use of single-supply drive topology enabling the FSBM30SH60A to be driven by only one drivesupply voltage without negative bias. Inverter current sensing application can be achieved due to the dividednegative dc terminals.

Parameters:

Technical/Catalog Information	FSBM30SH60A
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	30A
Operating Temperature	-20°C ~ 100°C
Package / Case	SPM32AA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSBM30SH60A FSBM30SH60A
