Part Number: FSBS15CH60
MFG: FAIRCHILD
Description: It is an advanced smart power module (SPMTM ) that Fairchild has newly developed and designed t...
- Table of contents:
FSBS15CH60
-
Suppliers
DataSheet
General Description
FSBS15CH60 General Description
It is an advanced smart power module (SPMTM ) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like air conditioner and wash-ing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less single-supply IGBT gate driving capability that fur-ther reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.
FSBS15CH60 Maximum Ratings
| Symbol | Parameter | Conditions | Rating | Unit |
| VPN |
Supply Voltage | Applied between P- NU ,NV ,NW |
450 | V |
| VPN(Surge) |
Supply Voltage (Surge) | Applied between P- NU ,NV ,NW |
500 | V |
| VCES |
Collector-emitter Voltage |
600 | V | |
| ±IC | Each IGBT Collector Current | TC=25 | 15 | A |
| ±ICP | Each IGBT Collector Current (Peak) | TC=25 Under 1ms Pulse Widt | 30 | A |
| PC |
Collector Dissipation | TC=25 per One Chip | 32 | W |
| TJ | Operating Junction Temperature |
(Note 1) | -20 ~ 125 |
FSBS15CH60 Features
UL Certified No.E209204(SPM27-BA package)
600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Isolation rating of 2500Vrms/min.
Very low leakage current due to using ceramic substrate
600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Isolation rating of 2500Vrms/min.
Very low leakage current due to using ceramic substrate
FSBS15CH60 Typical Application
AC 100V ~ 253V three-phase inverter drive for small power ac motor drives
Home appliances applications like air conditioner and wash-ing machine.
Home appliances applications like air conditioner and wash-ing machine.

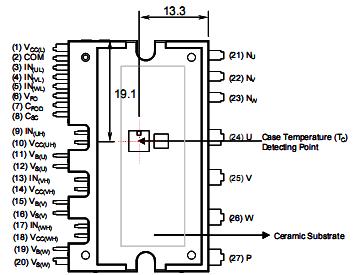

FSBS15CH60 Connection Diagram
FSBS15CH60
