Part Number: FSBS5CH60



MFG: FAIRCHILD

Package Cooled: MODULE



Description: It is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to provid...


Urgent Purchase

FSBS5CH60 General Description


It is an advanced smart power module (SPMTM ) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like air conditioner and wash-ing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less single-supply IGBT gate driving capability that fur-ther reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.

FSBS5CH60 Maximum Ratings

Symbol Parameter Conditions Rating Unit
VPN
 Supply Voltage Applied between P- NU , NV ,NW
 450 V
VPN(Surge)
 Supply Voltage (Surge) Applied between P- NU , NV ,NW
 500 V
VCES
Collector-emitter Voltage		   600 V
IC Each IGBT Collector Current TC=25 5 A
ICP Each IGBT Collector Current (Peak) TC=25 Under 1ms Pulse Widt 10 A
PC
 Collector Dissipation TC=25 per One Chip 25 W
TJ
Operating Junction Temperature		 (Note 1) -20 ~ 125

FSBS5CH60 Features

UL Certified No.E209204(SPM27-BA package)
600V-5A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Isolation rating of 2500Vrms/min.
Very low leakage current due to using ceramic substrate

FSBS5CH60 Typical Application

AC 100V ~ 253V  three-phase inverter drive for small power ac motor drives
Home appliances applications like air conditioner and wash-ing machine.

FSBS5CH60 datasheet

FSBS5CH60
PDF/DataSheet Download

  • Datasheet: FSBS5CH60
  • File Size: 567509 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find FSBS5CH60 Suppliers

  • ·FSB1014-102
  • ECM [ECM Electronics Limited.]
  • Shielded Radial Inductors
  • 74758 KB
  • FSB1014-102 Datasheet Download
  • ·FSB50250
  • FAIRCHILD [Fairchild Semiconductor]
  • Smart Power Module (SPM)
  • 348909 KB
  • FSB50250 Datasheet Download
  • ·FSB50450
  • FAIRCHILD [Fairchild Semiconductor]
  • Smart Power Module (SPM)
  • 348906 KB
  • FSB50450 Datasheet Download
  • ·FSB560
  • FAIRCHILD [Fairchild Semiconductor]
  • NPN Low Saturation Transistor
  • 213826 KB
  • FSB560 Datasheet Download
  • ·FSB560A
  • FAIRCHILD [Fairchild Semiconductor]
  • NPN Low Saturation Transistor
  • 213826 KB
  • FSB560A Datasheet Download
  • ·FSB619
  • FAIRCHILD [Fairchild Semiconductor]
  • NPN Low Saturation Transistor
  • 28605 KB
  • FSB619 Datasheet Download
  • ·FSB649
  • FAIRCHILD [Fairchild Semiconductor]
  • NPN Low Saturation Transistor
  • 31336 KB
  • FSB649 Datasheet Download
  • ·FSB660
  • FAIRCHILD [Fairchild Semiconductor]
  • PNP Low Saturation Transistor
  • 228819 KB
  • FSB660 Datasheet Download

Related Part Number

FSBS5CH60 Relative Products

  • FSBS3CH60L

    FSBS3CH60L

    MODULE SPM 600V 3A SPM27-BB

  • FSBS3CH60

    FSBS3CH60

    FSBS3CH60 is an advanced smart power module (SPMTM) that Fairchildhas newly developed and designed to provide very compactand high performance ac motor drives mainly targeting lowpowerinverter-driven application like air conditioner and washingmachine. FSBS3...

  • FSBS15CH60F

    FSBS15CH60F

    FSBS15CH60F is an advanced smart power module (SPM™) that Fairchildhas newly developed and designed to provide very compactand high performance ac motor drives mainly targeting lowpowerinverter-driven application like air conditioner and washingmachine...

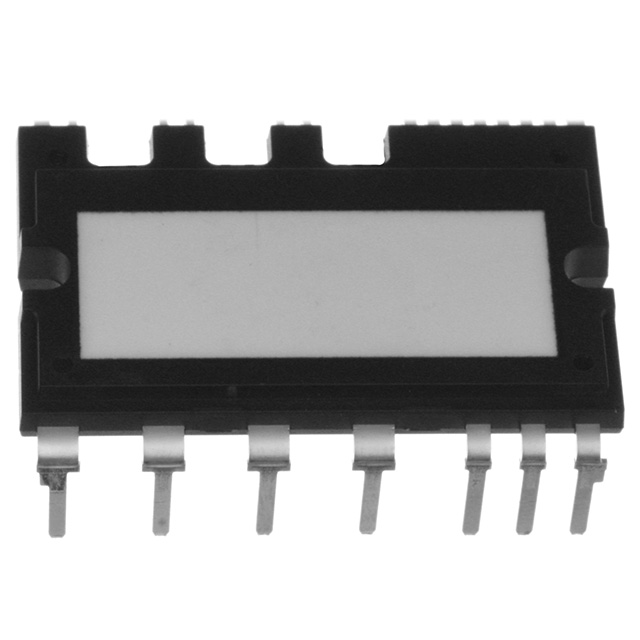

  • FSBS15CH60
