Product Details

Description



Features:

` 4 switch connection between two ports.
` Minimal propagation delay through the switch.
` Low lCC.
` Zero bounce in flow-through mode.
` Control inputs compatible with TTL level.


Pinout

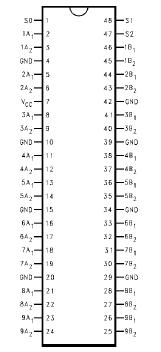

Connection Diagram


Specifications

Supply Voltage (VCC) ...........................−0.5V to +7.0V
DC Switch Voltage (VS)........................ −0.5V to +7.0V
DC Input Voltage (VIN)(Note 2)........... −0.5V to +7.0V
DC Input Diode Current (lIK) VIN<0V ...............−50mA
DC Output (IOUT) Sink Current........................ 128mA
DC VCC/GND Current (ICC/IGND)................ +/− 100mA
Storage Temperature Range (TSTG) ..−65 to +150


Description

The Fairchild Switch FST16209 provides 18-bits of highspeed CMOS TTL-compatible bus switching or exchanging. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.

The FST16209 operates as a 18-bit bus switch or a 9-bit bus exchanger, which allows data exchange between the four signal ports via the data-select terminals.
