Features:

• Single Chip USB  Parallel FIFO bi-directional Data Transfer
• Transfer Data rate to 1M Byte / Sec - D2XX Drivers
• Transfer Data rate to 300 Kilobyte / Sec - VCP Drivers
• Simple to interface to MCU / PLD/ FPGA logic with a 4 wire handshake interface
• Entire USB protocol handled on-chip. no USBspeci fic firmware programming required
• FTDI's royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.
• 384 Byte FIFO Tx buffer / 128 Byte FIFO Rx Buffer for high data throughput.
• New Send Immediate support via SI Pin for optimised data throughput.
• Support for USB Suspend / Resume through PWREN# and WAKEUP pins.
• Support for high power USB Bus powered devices through PWREN# pin
• Adjustable RX buffer timeout
• In-built support for event characters
• Integrated level converter on FIFO and control signals for interfacing to 5V and 3.3V logic
• Integrated 3.3V regulator for USB IO
• Integrated Power-On-Reset circuit
• Integrated 6MHz 48Mhz clock multiplier PLL
• USB Bulk or Isochronous data transfer modes
• New Bit-Bang Mode allows the data bus to be used as an 8 bit general purpose IO Port without the need for MCU or other support logic.
• 4.35V to 5.25V single supply operation
• UHCI / OHCI / EHCI host controller compatible
• USB 1.1 and USB 2.0 compatible
• USB VID, PID , Serial Number and Product Description strings in external EEPROM
• EEPROM programmable on-board via USB
• Compact 5 x 5 mm Lead free RoHS compliant QFN32 package



Application

- Easy MCU / PLD / FPGA interface to USB
- Upgrading Legacy Peripheral Designs to USB
- USB Instrumentation
- USB Industrial Control
- USB Audio and Low Bandwidth Video data transfer
- PDA USB data transfer
- USB MP3 Player Interface
- USB FLASH Card Reader / Writers
- Set Top Box (S.T.B.) PC - USB interface
- USB Digital Camera Interface
- USB Hardware Modems
- USB Wireless Modems

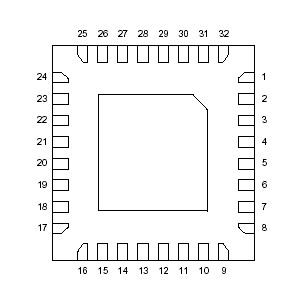

Pinout

  Connection Diagram


Specifications

Parameter
Value
Units
Storage Temperature
65oC to + 150oC
Degrees C
Floor Life (Out of Bag) at Factory Ambient
(30oC/60% Relative Humidity)
192 Hours (Level 3 Compliant)
**Note 5
Ambient Temperature (Power Applied)
0oC to + 70oC
Degrees C
M.T.B.F. (at 35oC)
247484 Hours 28 Years
VCC Supply Voltage
-0.5 to +6.00
V
DC Input Voltage - Inputs
-0.5 to +(VCC + 0.5)
V
DC Input Voltage - High Impedance Bidirectionals
-0.5 to +(VCC + 0.5)
V
DC Output Current Outputs
24
mA
DC Output Current Low Impedance Bidirectionals
24
mA
Power Dissipation (VCC = 5.25V)
500
mW
Electrostatic Discharge Voltage (Human Body Model) (I < 1uA)
+/- 3000
V
Latch Up Current (Vi = +/- 10V maximum, for 10 ms)
+/-200
mA



Description

The FT245BQ provides an easy cost-effective method of transferring data to / from a peripheral and a host P.C. at up to 8 Million bits (1 Megabyte) per second. Its simple, FIFO-like design makes it easy to interface to any microcontroller or microprocessor via IO ports.

To send data of FT245BQ from the peripheral to the host computer, simply write the byte-wide data into the module when TXE# is low. If the (384-byte) transmit buffer fills up or is busy storing the previously written byte, the FT245BQ keeps TXE high in order to stop further data from being written until some of the FIFO data has been transferred over USB to the host. TXE# goes high after every byte written.

When the host sends data to the peripheral over USB, the FT245BQ will take RXF# low to let the peripheral know that at least one byte of data is available. The peripheral of FT245BQ can read a data byte every time RXF# goes low. RXF# goes high after every byte read.

By using FTDI's virtual COM port drivers, the peripheral looks like a standard COM port to the application software. Commands to set the baud rate are ignored - the FT245BQ always transfers data at its fastest rate regardless of the application's baud-rate setting. Alternatively, FTDI's D2XX drivers allow application software to access the FT245BQ "directly" through a published DLL based API. Details of the current VCP and D2XX driver can be found on FTDI's web site ( http://www.ftdichip.com )
