FXL4T245

Features: Bi-directional interface between any 2 levels from 1.1V to 3.6V Fully configurable, inputs track VCC level Non-preferential power-up sequencing; either VCC may be powered-up first No power-up sequencing required Outputs remain in 3-STATE until active VCC level is reached Outputs switch ...

product image

FXL4T245 Picture
See larger image
SeekIC No. : 004345847 Detail

FXL4T245: Features: Bi-directional interface between any 2 levels from 1.1V to 3.6V Fully configurable, inputs track VCC level Non-preferential power-up sequencing; either VCC may be powered-up first No powe...

FXL4T245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FXL4T245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Bi-directional interface between any 2 levels from 1.1V to 3.6V
Fully configurable, inputs track VCC level
Non-preferential power-up sequencing; either VCC may be powered-up first
No power-up sequencing required
Outputs remain in 3-STATE until active VCC level is reached
Outputs switch to 3-STATE if either VCC is at GND
Power-off protection
Control inputs (T/R, OE) levels are referenced to VCCA voltage
Packaged in 14-terminal DQFN (2.5mm x 3.0mm) package
ESD protection exceeds:
• 4kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 8kV HBM I/O to GND ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 1kV CDM ESD (per ESD STM 5.3)
• 200V MM ESD (per JESD22-A115 & ESD STM5.2)

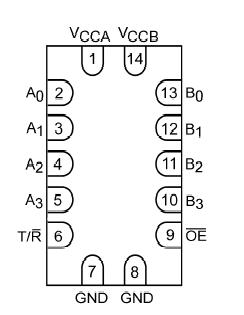

Pinout

Connection Diagram




Specifications

VCCA .............................................................−0.5V to +4.6V
VCCB .............................................................−0.5V to +4.6V
DC Input Voltage (VI)
I/O Port A ......................................................−0.5V to +4.6V
I/O Port B ......................................................−0.5V to +4.6V
Control Inputs (T/R, OE) ................................−0.5V to +4.6V
Output Voltage (VO) (Note 2)
Outputs 3-STATE ...........................................−0.5V to +4.6V
Outputs Active (An) .............................−0.5V to VCCA + 0.5V
Outputs Active (Bn)............................. −0.5V to VCCB + 0.5V
DC Input Diode Current (IIK) VI < 0V .......................−50 mA
DC Output Diode Current (IOK)
VO < 0V ....................................................................−50 mA
VO > VCC ..................................................................+50 mA
DC Output Source/Sink Current
(IOH/IOL) ..................................................−50 mA / +50 mA
DC VCC or Ground Current per
Supply Pin (ICC) ....................................................±100 mA
Storage Temperature Range (TSTG) ......−65°C to +150°C


Description

The FXL4T245 is a configurable dual-voltage-supply translator designed for bi-directional voltage translation of signals between two voltage levels. The FXL4T245 allows translation between voltages as high as 3.6V to as low as 1.1V. The A Port tracks the VCCA level, and the B Port tracks the VCCB level. Both ports are designed to accept supply voltage levels from 1.1V to 3.6V. This allows for bidirectional voltage translation over a variety of voltage levels:1.2V, 1.5V, 1.8V, 2.5V, and 3.3V.

The FXL4T245 remains in 3-STATE until both VCCs reach active levels allowing either VCC to be powered-up first.The device also contains power down control circuits that place the device in 3-STATE if either VCC is removed.

The Transmit/Receive (T/R) input determines the direction of data flow through the device. The OE input, when HIGH,disables both the A and B Ports by placing them in 3-STATE condition. The FXL4T245 is designed so that the control pins (T/R and OE) are supplied by VCCA.
