Product Details

Description



Features:

Bi-directional interface between any 2 levels from 1.1V to 3.6V
Fully configurable, inputs track VCC level
Non-preferential power-up sequencing; either VCC may be powered-up first
Outputs remain in 3-STATE until active VCC level is reached
Outputs switch to 3-STATE if either VCC is at GND
Power-off protection
Control inputs (T/R, OE) levels are referenced to VCCA voltage
Packaged in 24-terminal MLP
ESD protection exceeds:
• 4kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 8kV HBM I/O to GND ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 1kV CDM ESD (per ESD STM 5.3)
• 200V MM ESD (per JESD22-A115 & ESD STM5.2)

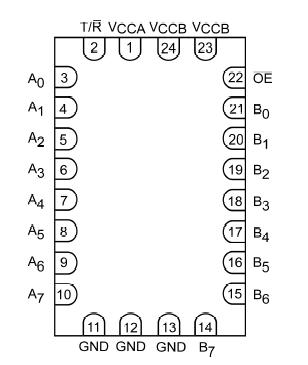

Pinout

Connection Diagram


Specifications

VCCA ..............................................................−0.5V to +4.6V
VCCB .............................................................−0.5V to +4.6V
DC Input Voltage (VI)
I/O Port A...................................................... −0.5V to +4.6V
I/O Port B ......................................................−0.5V to +4.6V
Control Inputs (T/R, OE) ................................−0.5V to +4.6V
Output Voltage (VO) (Note 2)
Outputs 3-STATE ...........................................−0.5V to +4.6V
Outputs Active (An) .............................−0.5V to VCCA + 0.5V
Outputs Active (Bn) .............................−0.5V to VCCB + 0.5V
DC Input Diode Current (IIK) VI < 0V ........................−50 mA
DC Output Diode Current (IOK)
VO < 0V ....................................................................−50 mA
VO > VCC.................................................................. +50 mA
DC Output Source/Sink Current
(IOH/IOL) ...................................................−50 mA / +50 mA
DC VCC or Ground Current per
Supply Pin (ICC)..................................................... ±100 mA
Storage Temperature Range (TSTG) ........−65°C to +150°C


Description

The FXL4245 is a configurable dual-voltage-supply translator designed for bi-directional voltage translation of signals between two voltage levels. The FXL4245 allows translation between voltages as high as 3.6V to as low as 1.1V. The A Port tracks the VCCA level, and the B Port tracks the VCCB level. Both ports are designed to accept supply voltage levels from 1.1V to 3.6V. This allows for bi-directional voltage translation over a variety of voltage levels: 1.2V, 1.5V, 1.8V,2.5V, and 3.3V.

The FXL4245 remains in 3-STATE until both VCCs reach active levels allowing either VCC to be powered-up first.The device also contains power down control circuits that place the device in 3-STATE if either VCC is removed.

The Transmit/Receive (T/R) input determines the direction of data flow through the device. The OE input, when HIGH,disables both the A and B Ports by placing them in a 3-STATE condition. The FXL4245 is designed so that the control pins (T/R and OE) are supplied by VCCA.
