Part Number: FZE1658G
Description: The Integrated circuit FZE 1658G is used to detect the signal states of eight independent input lines ...
- Table of contents:
FZE1658G
-
Suppliers
DataSheet
General Description
FZE1658G General Description
The Integrated circuit FZE 1658G is used to detect the signal states of eight independent input lines according to IEC 65A Type 2 (e.g. two-wire proximity switches) with a common ground (GND). For operation in accordance with IEC 65A, it is necessary for the device to be wired with resistors rated RV = 820 and REXT = 4.4 k with ± 2 % tolerance and 200 ppm TK. The input device has the following characteristics:
FZE1658G Maximum Ratings
| Parameter | Symbol | Limit Values | Unit | Notes | |
| min. | max. | ||||
| Transient input current inputs I0 - I7 |
II | 0.6 | 0.6 | A | t50 % 50 s |
| 1.2 | 1.2 | A | t50 % 1.2 s | ||
| 2.5 | 2.5 | A | t50 % 50 ns | ||
| Ground current | IGND | 5 | 5 | A | t50 % 50 s |
| - 10 | 10 | A | t50 % 50 ns | ||
| Junction temperature | Tj | 40 | 150 | °C | |
| Storage temperature | TS | 50 | 125 | °C | |
| Thermal resistance System/air |
Rthja | 95 | K/W | soldered-in | |
| Transient thermal resistance; Same current through all inputs I0 - I7 |
Zth | 0.15 | K/W | 50 s pulse | |
| Zth | K/W | 120 s pulse | |||
| Supply voltage | VS | 0.3 | 65 | V | |
| Ground offset DGND to GND | VDGND | 4 | 4 | V | VDGND < VS |
| Current at the LED outputs | IL | 15 | 15 | mA | |
| 500 | 500 | mA | t50 % 50 s | ||
| 250 | 250 | mA | t50 % 1.2 s | ||
| 125 | 125 | mA | t50 % 50 s | ||
| Voltage at T, LO-N, SO-N, SE-N |
VLOG | 4 | 9 | V | |
| 0.3 | 9 | V | referred to DGND | ||
| Capacitance at CT | CCT | 2 | F | when VS falls below VCT | |
| ESD voltage 100 pF / 1.5 k | VESD | 1000 | 1000 | V | MIL Std. 883 Meth. 3015 |
FZE1658G Features
Input protection against 2000 V burst/500 V surge pulse according to IEC 801 4/5
Input characteristic according to IEC 65 A, type 2 (24 V DC)
Digital filter
Serial in/out for easy cascading
Low power dissipation
SMD package
Input characteristic according to IEC 65 A, type 2 (24 V DC)
Digital filter
Serial in/out for easy cascading
Low power dissipation
SMD package
FZE1658G Typical Application
Minimization of power dissipation due to constant current characteristic
Inputs protected against reverse polarity and transient overvoltages
Status LED output for each input
Digital averaging of the input signals to suppress interference pulses
Serial output of the detected signals (cascadable)
Inputs protected against reverse polarity and transient overvoltages
Status LED output for each input
Digital averaging of the input signals to suppress interference pulses
Serial output of the detected signals (cascadable)

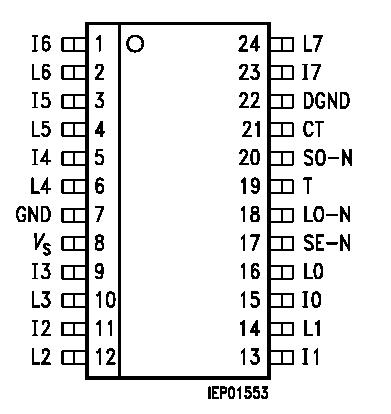

FZE1658G Connection Diagram
FZE1658G
PDF/DataSheet Download
- Datasheet: FZE1658G
- File Size: 416213 KB
- Manufacturer: INFINEON [Infineon Technologies AG]
- Click here to Download
