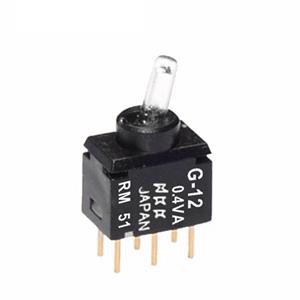

See larger image

SeekIC No. : 002662843 Detail

G12JPCF: Toggle Switches SPDT ON-NONE-ON R/G

G12JPCF Data Sheet

US $ 3.31~3.8 / Piece | Get Latest Price

Part Number:: G12JPCF
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$3.8
$3.67
$3.56
$3.31

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

G12JHC evaluate
US $2.51 - 4.64 / Piece

SWITCH TOGGLE ILLUM SPDT .4VA RA
G12JHCF evaluate
US $2.94 - 5.2 / Piece

SWITCH TOGGLE ILLUM SPDT .4VA RA
G12JHCF-RO evaluate
US $3.74 - 4.19 / Piece

Toggle Switches SPDT ON-NONE-ON R/G

Product Details

Quick Details

Contact Form :	SPDT	Switch Function :	ON - NONE - ON
Current Rating :	0.1 A	Voltage Rating AC :	28 V
Voltage Rating DC :	28 V	Power Rating :	0.4 Volt-Amp
Termination Style :	Solder Lug	Mounting Style :	Through Hole
Terminal Seal :	Epoxy	Contact Plating :	Gold
Illumination :	Illuminated

Description

Contact Form : SPDT
Voltage Rating DC : 28 V
Mounting Style : Through Hole
Terminal Seal : Epoxy
Switch Function : ON - NONE - ON
Contact Plating : Gold
Termination Style : Solder Lug
Power Rating : 0.4 Volt-Amp
Current Rating : 0.1 A
Voltage Rating AC : 28 V
Illumination : Illuminated

Parameters:

Technical/Catalog Information	G12JPCF
Vendor	NKK Switches of America Inc
Category	Switches
Circuit	SPDT
Switch Function	On-On
Mounting Type	Through Hole
Actuator Length	3.800mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination	Illuminated
Termination Style	PC Pin
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	G12JPCF G12JPCF 360 1695 ND 3601695ND 360-1695
