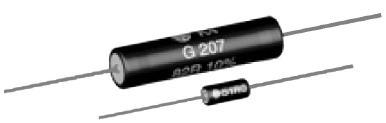

G24071932209JFC000 evaluate
US $.59 - .74 / Piece

Wirewound Resistors - Through Hole G204 22ohms 5%
G240TN*** evaluate
US $16.85 - 16.85 / Piece

ANT TWO-WAY RADIO 420-450MHZ TN

Product Details

Description

Features:

Ultra Low On-Resistance
Fast Switching

Application

Power Management in Notebook Computer
Portable Equipment
Battery Powered System.

Specifications

Parameter	Symbol	Ratings	Unit
Drain-Source Voltage	V_DS	20	V
Gate-Source Voltage	V_GS	±12	V
Continuous Drain Current³, V_GS@4.5V	I_D@T_A=25	3.2	mA
Continuous Drain Current³, V_GS@4.5V	I_D@T_A=70	2.6	mA
Pulsed Drain Current^1,2	I_DM	7.4	mA
Power Dissipation	P_D@T_A=25	1.38	W
Linear Derating Factor		0.01	W/
Operating Junction and Storage Temperature Range	T_j, T_stg	-55 ~ +150

Description

The G2402 provides the designer with the best combination of fast switching, low on-resistance and cost-effectiveness.
