G5103

Configurable Output Voltage Up to 16V

20A Quiescent Current

<1A Shutdown Current

<1A Shutdown Pin Current

Supply Range from 2.5V to 6.5V

Low V_DS(on): 250mV (I_SW=300mA)

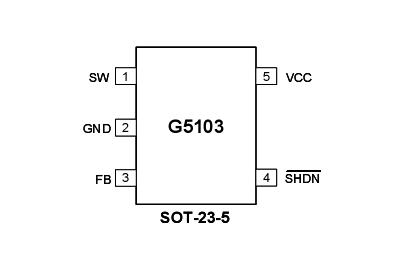

Tiny SOT-23-5 Package

STN/TFT LCD Bias

Personal Digital Assistants (PDAs)

Handheld Computers

Digital Still Cameras

Cellular Phones

WebPad

White LED Driver

Local 3V to 5V Conversion

SW to GND..........................-0.3V to +18V
FB to GND..... ......................-0.3V to V_CC
VCC,SHDN to GND.........................................-0.3V to +7V
Operating Temperature Range (Note 1)..-40°C to +85°C

Junction Temperature .....................................+125°C
Storage Temperature..............-65°C to +150°C
Reflow Temperature (soldering, 10sec)...........260°C

The G5103 boost converter is designed for small/ me-dium size LCD panel of high bias voltage.

Due to a typical 20A quiescent current and 2.5V~ 6.5V supply voltage range, G5103 is suitable for battery powered portable applications. Such as PDAs and Handheld Computers. When the IC sets to shutdown mode, it only consumes less than 1A.

Furthermore, the 350mA current limit, 500ns fixed minimum off-time and tiny SOT23-5 package facilitates the use of smaller inductor and other surface-mount components to minimize the PCB size in those space-conscious applications.

To control the IC, no other external current of G5103 is needed for the shutdown pin. It typically consumes less than 1A of full supply range.
