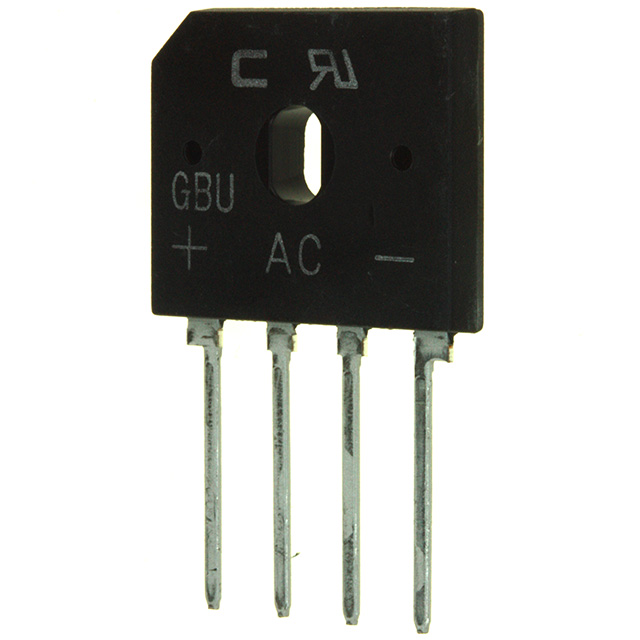

Purchase GBU2508, In-stock GBU2508 From SeekIC.
MFG:SEP D/C:07+
- Table of contents:
GBU2508
-
Suppliers
DataSheet
General Description
GBU2508 Maximum Ratings
|
PARAMETER |
SYMBOL |
GBU25005 |
GBU2501 |
GBU25502 |
GBU2504 |
GBU2506 |
GBU2508 |
GBU2510 |
UNIT |
| Maximum Recurrent Peak Reverse Voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Maximum RMS Bridge Input Voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
V |
| Maximum DC Blocking Voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Maximum Average Forward Current .375" (9.5mm) lead length at TA=100 |
I(AV) |
25.0 4.2 |
A | ||||||
| Peak Forward Surge Current : 8.3ms si ngle half si ne-wave superimposed on rated load(JEDEC method) |
IFSM |
350 |
A | ||||||
| Maximum Forward Voltage at 1.0A |
VF |
1.1
|
V | ||||||
| Maximum DC Reverse Current TJ=25 at Rated DC Blocking Voltage TJ=125 |
IR |
10 500 |
uA | ||||||
| I2t Rating for Fusing (t<8.3ms) |
I2t |
200 |
A2s | ||||||
| Typical Junction Capacitance Per Element (Note1) |
CJ |
70 |
pF | ||||||
| Typical Thermal Resistance |
RJC |
2.2 |
/W | ||||||
| Operating Junction and Storage Temperature Range |
TJ,TSTG |
-55 to + 150 |
|||||||
GBU2508 Features
Surge overload rating -350 amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizing molded plastic technique
Plastic material has U/L flammability classification 94V-0
Mounting postition:Any
Ideal for printed circuit board
Reliable low cost construction utilizing molded plastic technique
Plastic material has U/L flammability classification 94V-0
Mounting postition:Any
