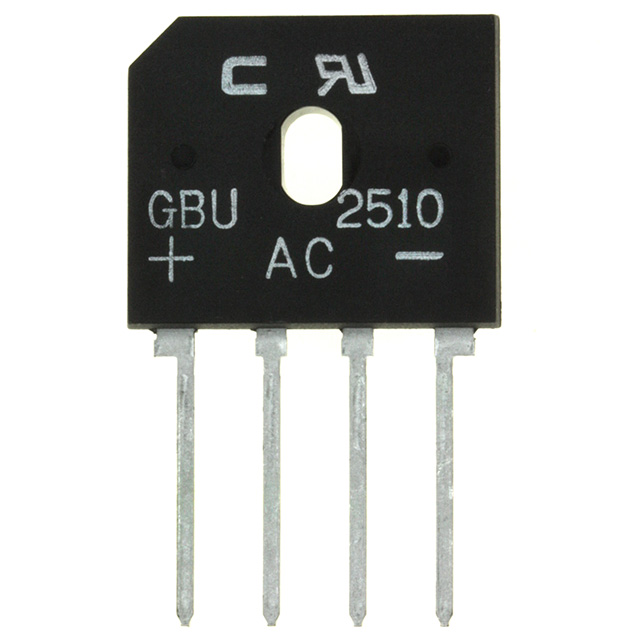

GBU4005 Product Image

GBU Series Datasheet download

Five Points

Part Number: GBU4005



MFG: SEP



D/C: 07+



Urgent Purchase

GBU4005 Maximum Ratings

Characteristic
Symbol
GBU
4005
GBU
4001
GBU
4002
GBU
4004
GBU
4006
GBU
4008
GBU
410
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
50
100
200
400
600
800
1000
V
RMS Reverse Voltage
V R(RMS)
35
70
140
280
420
560
700
V
Average Rectified Output Current (Note 1) @ TC = 100
IO
4.0
A
Non-Repetitive Peak Forward Surge Current
8.3ms single half sine-wave superimposed on rated load
(JEDEC Method)
IFSM
150
A
Forward Voltage (per element) @ IF = 5.0A
VFM
1.0
V
Peak Reverse Current @ TC = 25
at Rated DC Blocking Voltage @ TC = 125
IR
5.0
50
A
I2t Rating for Fusing (Note 2)
I2t
93
A2s
Typical Junction Capacitance per Element (Note 3)
CJ
80
pF
Typical Thermal Resistance Junction to Case (Note 1)
RJC
2.2
/W
Operating and Storage Temperature Range
Tj, TSTG
-55 to +150
Notes:
1. Unit mounted on 50mm x 50mm x 1.6mm copper plate heatsink.
2. Non-repetitive, for t > 1.0ms and < 8.3ms.
3. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

GBU4005 Features

· Glass Passivated Die Construction
· High Case Dielectric Strength of 1500VRMS
· Low Reverse Leakage Current
· Surge Overload Rating to 150A Peak
· Ideal for Printed Circuit Board Applications
· Plastic Material: UL Flammability
    Classification Rating 94V-0
· UL Listed Under Recognized Component
    Index, File Number E94661
