Purchase GL480, In-stock GL480 From SeekIC.
MFG:SHARP Package Cooled:-2
- Table of contents:

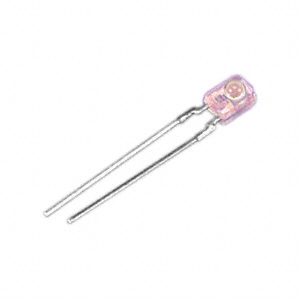

GL480
-
Suppliers
DataSheet
General Description
GL480 Maximum Ratings
| Parameter |
Symbol |
Rating |
Unit |
| Power dissipation |
P |
75 |
mW |
| Forward current |
IF |
50 |
mA |
| *1Peak forward current |
IFM |
1 |
A |
| Reverse voltage |
VR |
6 |
V |
| Operating temperature |
Topr |
- 25 to + 85 |
°C |
| Storage temperature |
Tstg |
- 40 to + 85 |
°C |
| *2Soldering temperature |
Tsol |
260 |
°C |
*2 For 3 seconds at the position of 1.4mm from the bottom face of resin package.
GL480 Features
·Narrow beam angle (Dq : TYP. ± 13°)
·Radiant flux (F e : MIN. 0.7mW at I F = 20mA)
·Compact, high reliability by chip coating (GL480Q/GL483Q )
·Long lead type (GL483Q)
·Radiant flux (F e : MIN. 0.7mW at I F = 20mA)
·Compact, high reliability by chip coating (GL480Q/GL483Q )
·Long lead type (GL483Q)
GL480 Typical Application
·Copiers
·Floppy disk drives
·Optoelectronic switches
·Floppy disk drives
·Optoelectronic switches
GL480
PDF/DataSheet Download
- Datasheet: GL480
- File Size: 46475 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
