Purchase GLT625608, In-stock GLT625608 From SeekIC.
Part Number: GLT625608
Description: GLT625608 is a 262,144-bit static random access memory organized as 32,768 words by 8 bits and operate...
- Table of contents:
GLT625608
-
Suppliers
DataSheet
General Description
GLT625608 General Description
GLT625608 is a 262,144-bit static random access memory organized as 32,768 words by 8 bits and operates from a single 5 volt supply. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with system I/O bus. The GLT625608 is available in a standard 330 mil SOP packages. Other packages will also available upon request
GLT625608 Maximum Ratings
Ambient Temperature
Under Bias.......................................-10°C to +80°C
Storage Temperature(plastic)........-55°C to +125°C
Voltage Relative to GND......................-0.5V to + 7.0V
Data Output Current..........................................50mA
Power Dissipation...............................................1.0W
Under Bias.......................................-10°C to +80°C
Storage Temperature(plastic)........-55°C to +125°C
Voltage Relative to GND......................-0.5V to + 7.0V
Data Output Current..........................................50mA
Power Dissipation...............................................1.0W
GLT625608 Features
* Available in 70/100ns(MAX.)
* Automatic power-down when chip disabled
* Low power consumption:GLT625608-467.5mW(Max.) Operating
* -500mW(Max.)Standby
* TTL compatible interface levels
* Single 5V power supply
* Fully static operation
* Three state outputs
* 256K bit EPROM pin compatible
* Data Retention as low as 2V
* Industrial Grade (-40°C~85°C) available.
* Automatic power-down when chip disabled
* Low power consumption:GLT625608-467.5mW(Max.) Operating
* -500mW(Max.)Standby
* TTL compatible interface levels
* Single 5V power supply
* Fully static operation
* Three state outputs
* 256K bit EPROM pin compatible
* Data Retention as low as 2V
* Industrial Grade (-40°C~85°C) available.

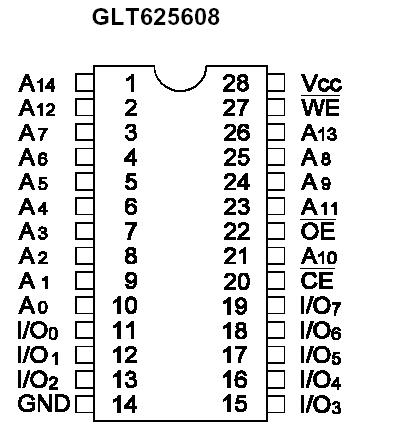

GLT625608 Connection Diagram
GLT625608-10FB
PDF/DataSheet Download
- Datasheet: GLT625608-10FB
- File Size: 1025413 KB
- Manufacturer: ETC [ETC]
- Click here to Download
