General Description
GMS81524 General Description
The GMS81508B/16B/24B are advanced CMOS 8-bit microcontrollers with 8K/16K/24K bytes of ROM and 64pin ckage.
And the GMS82512/16/24 are the same except for 12K/16K/24K bytes of ROM and 42pin package. The GMS825xx is acut-down product of GMS815xxB microcontroller, that is, the function and package are reduced. These are powerful icro-controllers which provide a highly flexible and cost effective solution to many general application. These includes everal peripheral functions such as Timer, A/D converter, Programmable buzzer driver, Serial I/O communication(GMS815xxB nly), Pulse Width Modulation function( GMS815xxB only), etc. The RAM, ROM, and I/O are placed on the same emorymap in addition to simple instruction set. Also, they support power saving mode to reduce power onsumption.
The GMS815xxB is functionally 100% compatible with earier GMS81508/16 or GMS81508A/16A, and has better charac-eristics such as strong EMS, wide operating voltage, temperature, frequency and fast programming time for the OTP.
GMS81524 Maximum Ratings
Supply voltage ....................................... -0.3 to +7.0 V
Storage Temperature ...........................-40 to +125 °C
Voltage on any pin with respect to Ground (VSS)
..............................................................-0.3 to VDD+0.3
Maximum current out of VSS pin .........................150 mA
Maximum current into VDD pin ..............................80 mA
Maximum current sunk by (IOL per I/O Pin) ..........20 mA
Maximum output current sourced by (IOH per I/O Pin)
.................................................................................8 mA
Maximum current (IOL) ..................................... 100 mA
Maximum current (IOH)........................................ 50 mA
Note: Stresses above those listed under "Absolute Maxi-mum Ratings" may cause permanent damage to the de-vice. This is a stress rating only and functional operation of the device at any other conditions above those indicated in the operational sections of this specification is not implied.
Exposure to absolute maximum rating conditions for ex-tended periods may affect device reliability.
GMS81524 Features
• 8K/16K/24K Bytes On-chip Program ROM
(12K/16K/24K Bytes in GMS825xx)
• 448 Bytes of On-chip Data RAM
(Included stack memory)
• Minimum Instruction Execution Time
0.5µ µ µ µs at 8MHz
• One 8-bit Basic Interval Timer
• Four 8-bit Timer/Event counter
or Two 16-bit Timer/Event counter
• One 6-bit Watchdog timer
• Eight channel 8-bit A/D converter
(Four channel in GMS825xx)
• Two channel 8-bit PWM
(Not support in GMS825xx)
• One 8-bit Serial Communication Interface
(Not support in GMS825xx)
• Four External Interrupt input ports
• Buzzer Driving port
- 500Hz ~ 250kHz@8MHz
• 52 I/O Ports, 4 Input Ports
(35 I/O ports in GMS825xx)
• Twelve Interrupt sources
- Basic Interval Timer: 1
- External input: 4
- Timer/Event counter: 4
- ADC: 1
- Serial Interface: 1(Not support in GMS825xx)
- WDT: 1
• Built in Noise Immunity Circuit
- Noise filter
- Power fail processor
• Power Down Mode
- STOP mode
• 2.2V to 5.5V Wide Operating Range
• 1~10MHz Wide Operating Frequency
• 64SDIP, 64MQFP, 64LQFP package types
(42SDIP,44MQFP in GMS825xx)
• Available 16K, 24K bytes OTP version
(Available 24K bytes in GMS825xx)
(12K/16K/24K Bytes in GMS825xx)
• 448 Bytes of On-chip Data RAM
(Included stack memory)
• Minimum Instruction Execution Time
0.5µ µ µ µs at 8MHz
• One 8-bit Basic Interval Timer
• Four 8-bit Timer/Event counter
or Two 16-bit Timer/Event counter
• One 6-bit Watchdog timer
• Eight channel 8-bit A/D converter
(Four channel in GMS825xx)
• Two channel 8-bit PWM
(Not support in GMS825xx)
• One 8-bit Serial Communication Interface
(Not support in GMS825xx)
• Four External Interrupt input ports
• Buzzer Driving port
- 500Hz ~ 250kHz@8MHz
• 52 I/O Ports, 4 Input Ports
(35 I/O ports in GMS825xx)
• Twelve Interrupt sources
- Basic Interval Timer: 1
- External input: 4
- Timer/Event counter: 4
- ADC: 1
- Serial Interface: 1(Not support in GMS825xx)
- WDT: 1
• Built in Noise Immunity Circuit
- Noise filter
- Power fail processor
• Power Down Mode
- STOP mode
• 2.2V to 5.5V Wide Operating Range
• 1~10MHz Wide Operating Frequency
• 64SDIP, 64MQFP, 64LQFP package types
(42SDIP,44MQFP in GMS825xx)
• Available 16K, 24K bytes OTP version
(Available 24K bytes in GMS825xx)

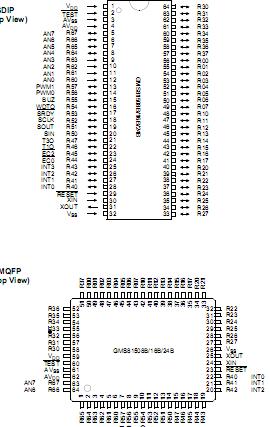

GMS81524 Connection Diagram
GMS81524
PDF/DataSheet Download
- Datasheet: GMS81524
- File Size: 2028533 KB
- Manufacturer: HYNIX [Hynix Semiconductor]
- Click here to Download
