Purchase GMS97C5X, In-stock GMS97C5X From SeekIC.
Part Number: GMS97C5X
Description: The GMS90 series is fully compatible to the standard 8051 microcontroller family.It is compatible with the gene...
- Table of contents:
GMS97C5X
-
Suppliers
DataSheet
General Description
GMS97C5X General Description
The GMS90 series is fully compatible to the standard 8051 microcontroller family.
It is compatible with the general 8051 family.While maintaining all architectural and operational characteristics of the general 8051 family.
GMS97C5X Maximum Ratings
Ambient temperature under bias (TA)......................................................... -40 to + 85
Storage temperature (TST)....................................................................... -65 to + 150
Voltage on VCC pins with respect to ground (VSS) ..................................... -0.5V to 6.5V
Voltage on any pin with respect to ground (VSS) ..............................-0.5V to VCC + 0.5V
Input current on any pin during overload condition................................ -15mA to +15mA
Absolute sum of all input currents during overload condition ...............................|100mA|
Power dissipation ......................................................................................................1.5W
Storage temperature (TST)....................................................................... -65 to + 150
Voltage on VCC pins with respect to ground (VSS) ..................................... -0.5V to 6.5V
Voltage on any pin with respect to ground (VSS) ..............................-0.5V to VCC + 0.5V
Input current on any pin during overload condition................................ -15mA to +15mA
Absolute sum of all input currents during overload condition ...............................|100mA|
Power dissipation ......................................................................................................1.5W

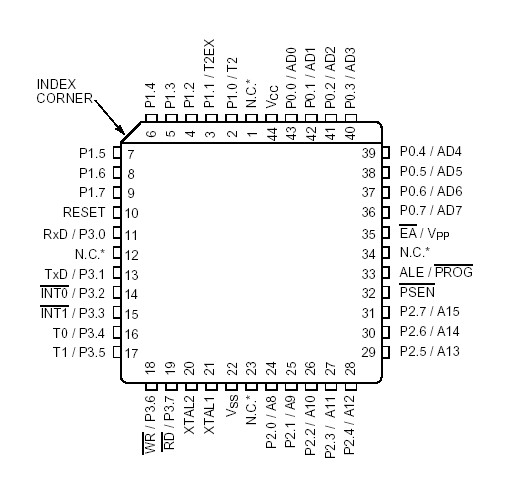

GMS97C5X Connection Diagram
