Sensing Method: Transmissive
Mounting Type: Through Hole
Package / Case: PCB Mount
Sensing Distance: 0.197" (5mm)
Series: OPIC™
Manufacturer: Sharp Microelectronics
Output Configuration: Pull-Up Resistor, Buffer
Current - Supply: 1.7mA
Voltage - Supply: 4.5 V ~ 17 V
Response Time: 1µs, 0.05µs
Features: 1. Transmissive with OPIC output
2. Highlights:
• Vertical Slit for alternate motion detection
• Output Low Level at intercepting optical path
3. Key Parameters:
• Gap Width : 5mm
• Slit Width (detector side) : 0.5mm
• Package : 13.7×10×5.2mm
4. Lead free and RoHS directive compliantSpecifications
|
Parameter |
Symbol |
Rating |
Unit |
|
Input |
*1 Forward current |
IF |
50 |
mA |
|
*1, 2Peak forward current |
IFM |
1 |
A |
|
Reverse voltage |
VR |
6 |
V |
|
Power dissipation |
P |
75 |
mW |
|
Output |
Supply voltage |
VCC |
-0.5 to +17 |
V |
|
Output current |
IO |
50 |
mA |
|
Power dissipation |
PO |
250 |
mW |
|
Operating temperature |
Topr |
-25 to +85 |
|
|
Storage temperature |
Tstg |
-40 to +100 |
|
|
*3Soldering temperature |
Tsol |
260 |
|
*1 Refer to Fig. 1, 2, 3
*2 Pulse width 100s, Duty ratio=0.01

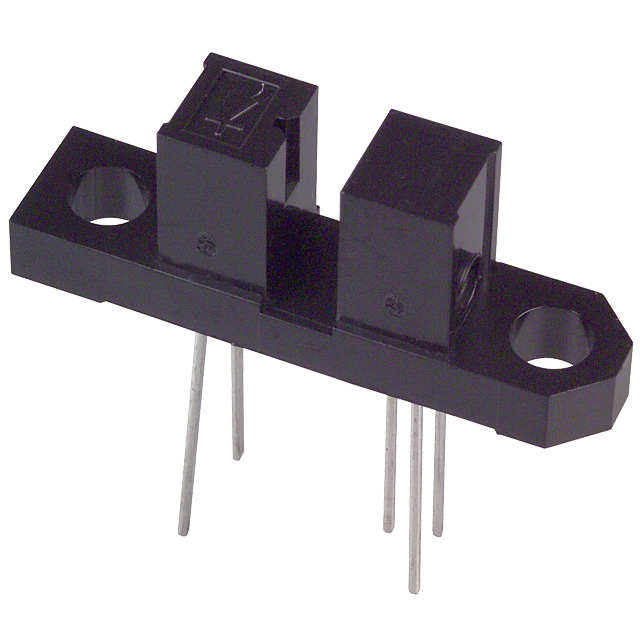

*3 For 5s or lessDescriptionGP1A53HRJ00F is a standard, OPIC output, transmissive photointerrupter with opposing emitter and detector in a case, providing non-contact sensing. For GP1A53HRJ00F, the emitter and detector are inserted in a case, resulting in a through-hole design.
Parameters: | Technical/Catalog Information | GP1A53HRJ00F |
| Vendor | Sharp Microelectronics |
| Category | Sensors, Transducers |
| Sensing Distance | 0.118" (3mm) |
| Sensing Method | Transmissive |
| Output Configuration | Pull-Up Resistor, Buffer |
| Mounting Type | Through Hole |
| Current - Supply | 1.7mA |
| Voltage - Supply | 4.5 V ~ 17 V |
| Package / Case | PCB Mount |
| Features | OPIC? Configuration |
| Response Time | 1s , 0.05s <!--0.05us--> |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | GP1A53HRJ00F
GP1A53HRJ00F
425 2432 5 ND
42524325ND
425-2432-5
|
GP1A53HRJ00F Data Sheet
