Purchase GP522, In-stock GP522 From SeekIC.
Part Number: GP522
Description: The GP522 is a single memory controller chip, designed as an array of resistors used to control functi...
- Table of contents:
GP522
-
Suppliers
DataSheet
General Description
GP522 General Description
The GP522 is a single memory controller chip, designed as an array of resistors used to control functions of any signal processing integrated circuit. Controller consists of eight digitally programmable resistors and one switch. The GP522 can be programmed by any programmer supporting communication standard for programmable devices P/N 30381-00.
GP522 Maximum Ratings
|
PARAMETER |
PARAMETER |
|
Supply Voltage Minimum Voltage on any pad Maximum Voltage on SDA pad Maximum Voltage on any other pad ESD rating of SDA pad ESD rating of any other pad Operating Temperature Range Storage Temperature Range |
1.4V DC -0.5V DC 17.5V DC VBAT ±1500V ±2000V 0 to 40 -40 to 70 |
GP522 Features
• 8 programmable resistors
• 1 programmable switch
• conforms to communication standard programmable devices P/N 30381-000
• 1 programmable switch
• conforms to communication standard programmable devices P/N 30381-000

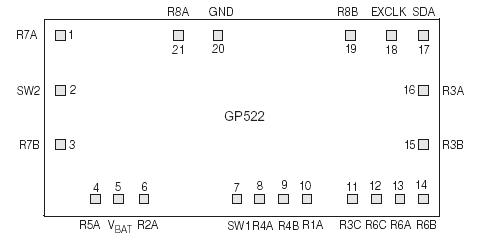

GP522 Connection Diagram
