Part Number: GS-R24P
Description: The GS-R24P series is a family of high efficiency step down switching voltage regulator, designed to replace linear regulators. Ba...
- Table of contents:
GS-R24P
-
Suppliers
DataSheet
General Description
GS-R24P General Description
The GS-R24P series is a family of high efficiency step down switching voltage regulator, designed to replace linear regulators.
Based on STM L5973 device, this non isolated family of regulators are suitable for the full spectrum of applications including telecom, industry, computer and distributed power system applications having a widely ranging input voltage.
GS-R24P Maximum Ratings
| Symbol | Parameter | Value | Unit |
| Vi | DC Input Voltage (for GS-R12(P)XXX1.5) | 36 | V |
| Iout | Maximum Output Current | int. limit | |
| V4 | INH | -0.3 to Vi | V |
| V6 | FB | 4 | V |
| Tstg | Storage Temperature Range | -40 ÷ 105 | °C |
| Top | Operating Ambient Temperature | -25 ÷ 70 | °C |
| Top1 | Operating Ambient Temperature with current derating | -25 ÷ 85 | °C |
GS-R24P Features
` MTBF 1 000 000 hours (Tamb=25)
` 1.5A max output current
` 35V max input voltage
` 1.5V max drop-out voltage
` Remote logic inhibit/enable
` Not-latching overload and short circuit protection
` Thermal shutdown
` Fixed or adjustable output
` No heatsink required
` 1.5A max output current
` 35V max input voltage
` 1.5V max drop-out voltage
` Remote logic inhibit/enable
` Not-latching overload and short circuit protection
` Thermal shutdown
` Fixed or adjustable output
` No heatsink required
GS-R24P
PDF/DataSheet Download
- Datasheet: GS-R24P
- File Size: 68689 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
- ·GS-C200
- STMICROELECTRONICS [STMicroelectronics]
- INTELLIGENT STEPPER MOTOR CONTROLLERS
- 322476 KB
- ·GS-C200S
- STMICROELECTRONICS [STMicroelectronics]
- INTELLIGENT STEPPER MOTOR CONTROLLERS
- 322476 KB
- ·GS-D200
- STMICROELECTRONICS [STMicroelectronics]
- 2/2.5A BIPOLAR STEPPER MOTOR DRIVE MODULES
- 188106 KB
- ·GS-D200S
- STMICROELECTRONICS [STMicroelectronics]
- 2/2.5A BIPOLAR STEPPER MOTOR DRIVE MODULES
- 188106 KB
- ·GS-D500A
- STMICROELECTRONICS [STMicroelectronics]
- 100V/5A STEP AND MICROSTEP DRIVE BOARD FOR STEPPER MOTORS
- 102134 KB
- ·GS-DC200
- STMICROELECTRONICS [STMicroelectronics]
- STEPPER MOTOR CONTROL AND DRIVE SYSTEM FAMILY
- 94462 KB
- ·GS-DC200 Family
- STMicro
- STEPPER MOTOR CONTROL AND DRIVE SYSTEM FAMILY
- 94462 KB
- ·GS-DC200S
- STMICROELECTRONICS [STMicroelectronics]
- STEPPER MOTOR CONTROL AND DRIVE SYSTEM FAMILY
- 94462 KB
GS-R24P Relative Products

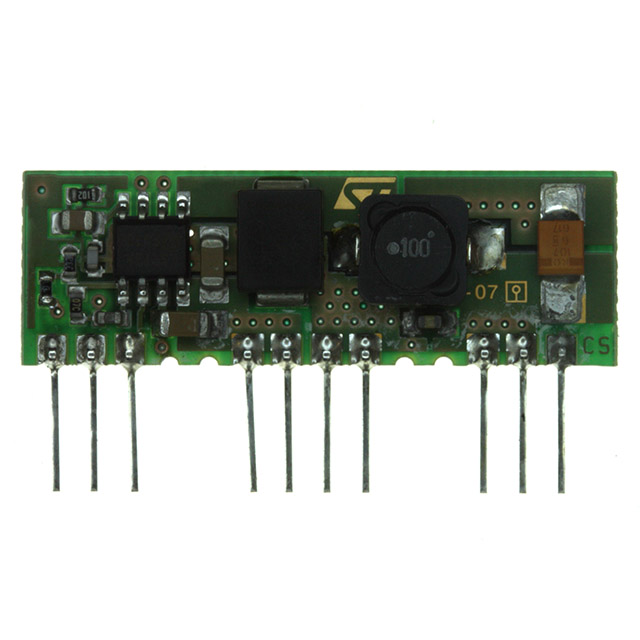

GS-R24FV0001.8
