Part Number: GS72108
Description: The GS72108 is a high speed CMOS Static RAM organized as 262,144 words by 8 bits. Static design eliminates the need for...
- Table of contents:
GS72108
-
Suppliers
DataSheet
General Description
GS72108 General Description
The GS72108 is a high speed CMOS Static RAM organized as 262,144 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTL-compatible. The GS72108 is available in 400 mil SOJ and 400 mil TSOP Type-II packages.
GS72108 Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Supply Voltage | VDD | 0.5 to +4.6 | V |
| Input Voltage | VIN | 0.5 to VDD +0.5 ( 4.6 V max.) |
V |
| Output Voltage | VOUT | 0.5 to VDD +0.5 ( 4.6 V max.) |
V |
| Allowable power dissipation | PD | 0.7 | W |
| Storage temperature | TSTG | 55 to 150 |
GS72108 Features
• Fast access time: 8, 10, 12, 15 ns
• CMOS low power operation: 150/125/110/90 mA at minimum cycle time.
• Single 3.3 V ± 0.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40° to 85°C
• Package line up
J: 400 mil, 36-pin SOJ package
TP: 400 mil, 44-pin TSOP Type II package
• CMOS low power operation: 150/125/110/90 mA at minimum cycle time.
• Single 3.3 V ± 0.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40° to 85°C
• Package line up
J: 400 mil, 36-pin SOJ package
TP: 400 mil, 44-pin TSOP Type II package

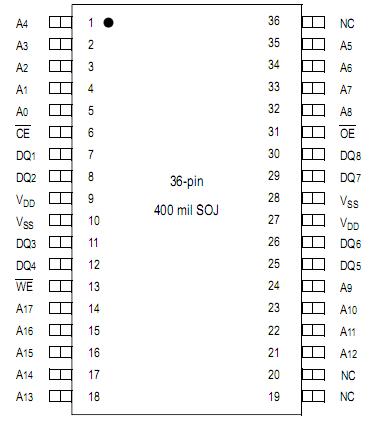

GS72108 Connection Diagram
GS72108AJ-10
