GS8160E18BT
-
Suppliers
DataSheet
General Description
GS8160E18BT Maximum Ratings
| Symbol | Description | Value | Unit |
| VDD | Voltage on VDD Pins | 0.5 to 4.6 | V |
| VDDQ | Voltage in VDDQPins | 0.5 to 4.6 | V |
| VI/O | Voltage on I/O Pins | 0.5 to VDDQ+0.5 | V |
| VIN | Voltage on Other Input Pins | 0.5 to VDD +0.5 | V |
| IIN | Input Current on Any Pin | +/20 | mA |
| IOUT | Output Current on Any I/O Pin | +/20 | mA |
| PD | Package Power Dissipation | 1.5 | W |
| TSTG | Storage Temperature | 55 to 125 | |
| TBIAS | Temperature Under Bias | 55 to 125 |
Permanent damage to the device may occur if the Absolute Maximum Ratings are exceeded. Operation should be restricted to Recommended Operating Conditions. Exposure to conditions exceeding the Absolute Maximum Ratings, for an extended period of time, may affect reliability of this component.
GS8160E18BT Features
• FT pin for user-configurable flow through or pipeline operation
• Dual Cycle Deselect (DCD) operation
• 2.5 V or 3.3 V +10%/10% core power supply
• 2.5 V or 3.3 V I/O supply
• LBO pin for Linear or Interleaved Burst mode
• Internal input resistors on mode pins allow floating mode pins
• Default to Interleaved Pipeline mode
• Byte Write (BW) and/or Global Write (GW) operation
• Internal self-timed write cycle
• Automatic power-down for portable applications
• JEDEC-standard 100-lead TQFP package
• RoHS-compliant 100-lead TQFP package available
• Dual Cycle Deselect (DCD) operation
• 2.5 V or 3.3 V +10%/10% core power supply
• 2.5 V or 3.3 V I/O supply
• LBO pin for Linear or Interleaved Burst mode
• Internal input resistors on mode pins allow floating mode pins
• Default to Interleaved Pipeline mode
• Byte Write (BW) and/or Global Write (GW) operation
• Internal self-timed write cycle
• Automatic power-down for portable applications
• JEDEC-standard 100-lead TQFP package
• RoHS-compliant 100-lead TQFP package available
GS8160E18BT Typical Application
The GS8160E18/32/36BT is an 18,874,368-bit (16,777,216-bit for x32 version) high performance synchronous SRAM with a 2-bit burst address counter. Although of a type originally developed for Level 2 Cache applications supporting high performance CPUs, the device now finds application in synchronous SRAM applications, ranging from DSP main store to networking chip set support.

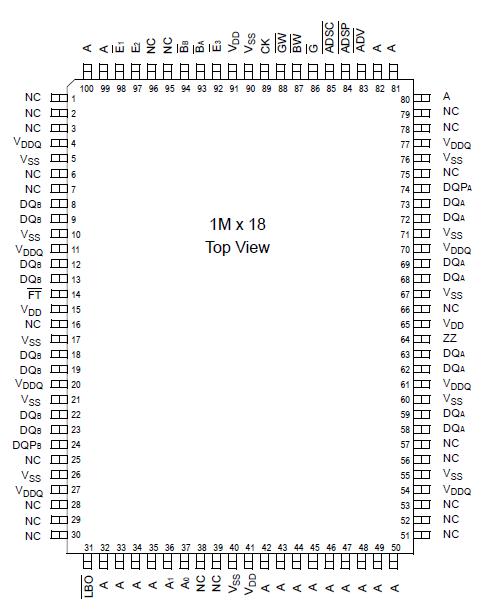

GS8160E18BT Connection Diagram
GS8160E18BT-150
