GX214A

Features: • low cost• differential gain at 3.58 MHz, 0.05% max.• differential phase at 3.58 MHz, 0.05 deg. max.• off-isolation better than 90 dB at 10 MHz• all hostile crosstalk at 3.58 MHz, 75 dB typ. (RIN= 75 Ω)• make-before-break switchingApplication...

product image

GX214A Picture
See larger image
SeekIC No. : 004357279 Detail

GX214A: Features: • low cost• differential gain at 3.58 MHz, 0.05% max.• differential phase at 3.58 MHz, 0.05 deg. max.• off-isolation better than 90 dB at 10 MHz• all hostile ...

GX214A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GX214A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  low cost
•  differential gain at 3.58 MHz, 0.05% max.
•  differential phase at 3.58 MHz, 0.05 deg. max.
•  off-isolation better than 90 dB at 10 MHz
•  all hostile crosstalk at 3.58 MHz, 75 dB typ. (RIN= 75 Ω)
•  make-before-break switching


Application

• CATV and CCTV systems
• low cost video routing


Pinout

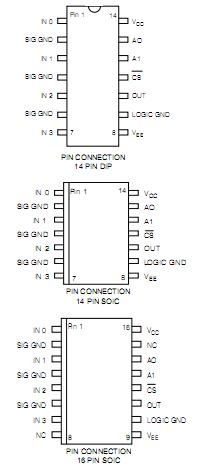

Connection Diagram


Specifications

Supply Voltage ...................................................±10.0 V
Operating Temperature Range............ 0  TA 70
Storage Temperature Range......... ....-65 T 150

Lead Temperature (Soldering, 10 Sec)................. 260
Analog Input Voltage............... -4 V VIN VCC+0.3 V
Logic Input Voltage.............................. 0 V V 5.5 V




Description

The GX214A is a low cost 4x1 video multiplexer containingour analog video switches and a 2 to 4 decoder. A ChipSelect input allows paralleled GX214As to be operated ina switching matrix.

The GX214A represents a fully buffered, unilateral transmissionpath when enabled. When disabled, the output is highmpedance.The device operates from ± 7.5 V to ±9.5 V supplies withTTL and 5 V CMOS compatible input logic levels.
