H300H
-
Suppliers
DataSheet
General Description
H300H Maximum Ratings
| Item | Symbol | Value | Unit |
| Power supply voltage | VCC | 0.3 to +4.3 | V |
| Input voltage (except port 7) | Vin | 0.3 to VCC +0.3 | V |
| Input voltage (port 7) | Vin | 0.3 to AVCC +0.3 | V |
| Analog power supply voltage | AVCC | 0.3 to +7.0 | V |
| Analog input voltage | VAN | 0.3 to AVCC +0.3 | V |
| Operating temperature | Topr | 20 to +75 | °C |
| Storage temperature | Tstg | 55 to +125 | °C |
H300H Features
` Upward compatibility with H8/300 CPU Can execute H8/300 series object programs without alteration
` General-register architecture Sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit registers)
` Sixty-two basic instructions
- 8/16/32-bit arithmetic and logic instructions
- Multiply and divide instructions
- Powerful bit-manipulation instructions
` Eight addressing modes
- Register direct [Rn]
- Register indirect [@ERn]
- Register indirect with displacement [@(d:16, ERn) or @(d:24, ERn)]
- Register indirect with post-increment or pre-decrement [@ERn+ or @ERn]
- Absolute address [@aa:8, @aa:16, or @aa:24]
- Immediate [#xx:8, #xx:16, or #xx:32]
- Program-counter relative [@(d:8, PC) or @(d:16, PC)]
- Memory indirect [@@aa:8]
` 16-Mbyte linear address space
` High-speed operation
- All frequently-used instructions execute in two to four states
- Maximum clock frequency: 18 MHz
- 8/16/32-bit register-register add/subtract: 111 ns
- 8 ´ 8-bit register-register multiply: 778 ns
- 16 ¸ 8-bit register-register divide: 778 ns
- 16 ´ 16-bit register-register multiply: 1222 ns
- 32 ¸ 16-bit register-register divide: 1222 ns
` Two CPU operating modes
- Normal mode (cannot be used with this LSI)
- Advanced mode
` Low-power mode Transition to power-down state by SLEEP instruction
` General-register architecture Sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit registers)
` Sixty-two basic instructions
- 8/16/32-bit arithmetic and logic instructions
- Multiply and divide instructions
- Powerful bit-manipulation instructions
` Eight addressing modes
- Register direct [Rn]
- Register indirect [@ERn]
- Register indirect with displacement [@(d:16, ERn) or @(d:24, ERn)]
- Register indirect with post-increment or pre-decrement [@ERn+ or @ERn]
- Absolute address [@aa:8, @aa:16, or @aa:24]
- Immediate [#xx:8, #xx:16, or #xx:32]
- Program-counter relative [@(d:8, PC) or @(d:16, PC)]
- Memory indirect [@@aa:8]
` 16-Mbyte linear address space
` High-speed operation
- All frequently-used instructions execute in two to four states
- Maximum clock frequency: 18 MHz
- 8/16/32-bit register-register add/subtract: 111 ns
- 8 ´ 8-bit register-register multiply: 778 ns
- 16 ¸ 8-bit register-register divide: 778 ns
- 16 ´ 16-bit register-register multiply: 1222 ns
- 32 ¸ 16-bit register-register divide: 1222 ns
` Two CPU operating modes
- Normal mode (cannot be used with this LSI)
- Advanced mode
` Low-power mode Transition to power-down state by SLEEP instruction
H300H Connection Diagram
H3046
PDF/DataSheet Download
- Datasheet: H3046
- File Size: 23037 KB
- Manufacturer:
- Click here to Download
- ·H3080
- 139240 KB
- ·H30D05
- MOSPEC [Mospec Semiconductor]
- HIGH EFFICIENCY RECTIFIERS(30A,50-200V)
- 144691 KB
- ·H30D10
- MOSPEC [Mospec Semiconductor]
- HIGH EFFICIENCY RECTIFIERS(30A,50-200V)
- 144691 KB
- ·H30D15
- MOSPEC [Mospec Semiconductor]
- HIGH EFFICIENCY RECTIFIERS(30A,50-200V)
- 144691 KB
- ·H30D20
- MOSPEC [Mospec Semiconductor]
- HIGH EFFICIENCY RECTIFIERS(30A,50-200V)
- 144691 KB
- ·H30D30
- MOSPEC [Mospec Semiconductor]
- HIGH EFFICIENCY RECTIFIERS(30A,300-600V)
- 147985 KB
- ·H30D40
- MOSPEC [Mospec Semiconductor]
- HIGH EFFICIENCY RECTIFIERS(30A,300-600V)
- 147985 KB
- ·H30D50
- MOSPEC [Mospec Semiconductor]
- HIGH EFFICIENCY RECTIFIERS(30A,300-600V)
- 147985 KB
H300H Relative Products
H3001

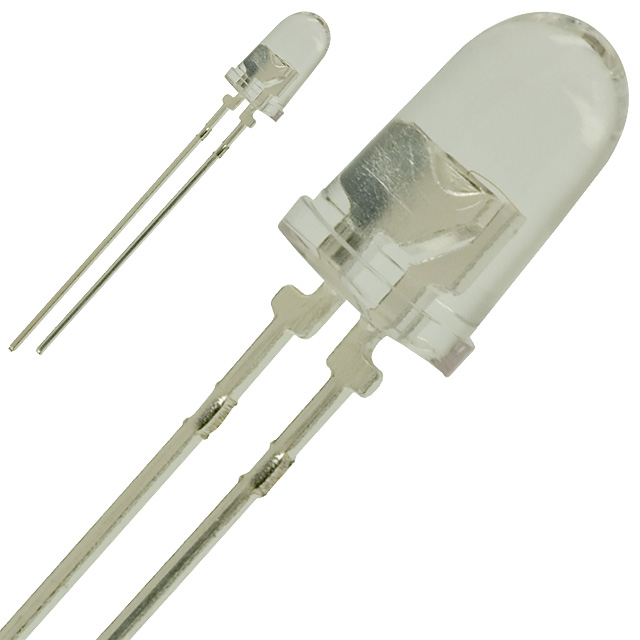

H-3000L
